Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

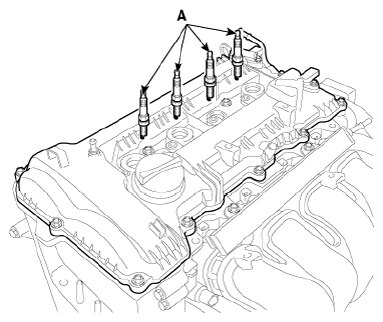

  2. Using a spark plug wrench, remove the spark plug (A).
    NOTE:
    • Be careful that no contaminates enter into spark plug holes.
    G12826101Courtesy of KIA MOTORS AMERICA, INC.
