Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

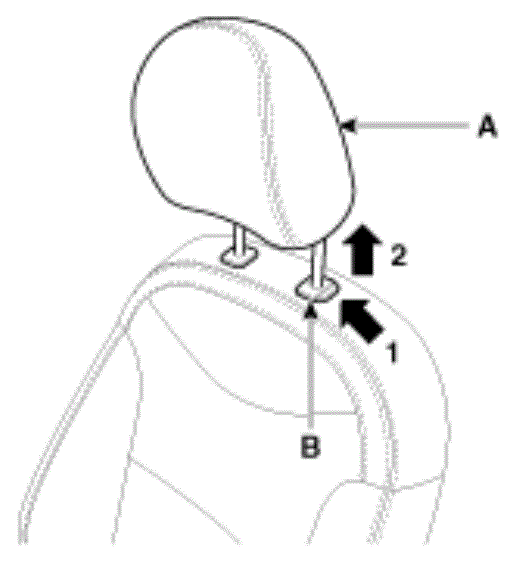

Push the lock pin (B) and pull out the front seat headrest (A) to remove it.

Courtesy of KIA MOTORS AMERICA, INC.

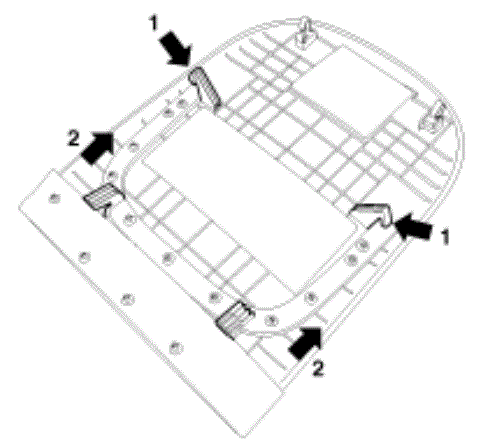

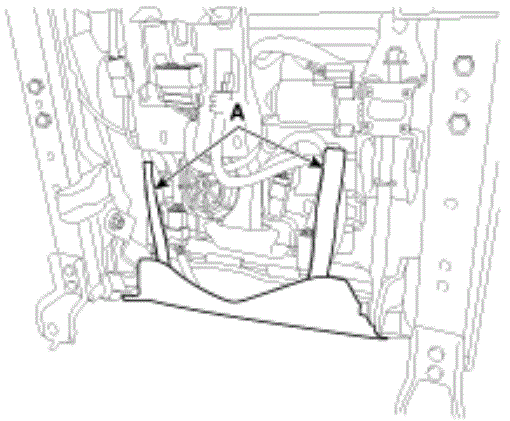

Remove the front seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

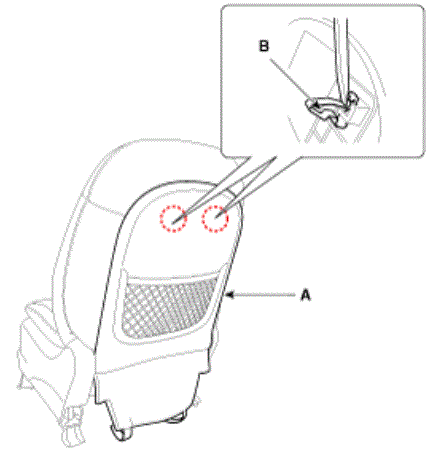

Push the lock pins (B) to remove the front seat back board (A).
CAUTION:
- Push the middle area of clip using a flat head screwdriver.
- Be careful not to damage the lock pins.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

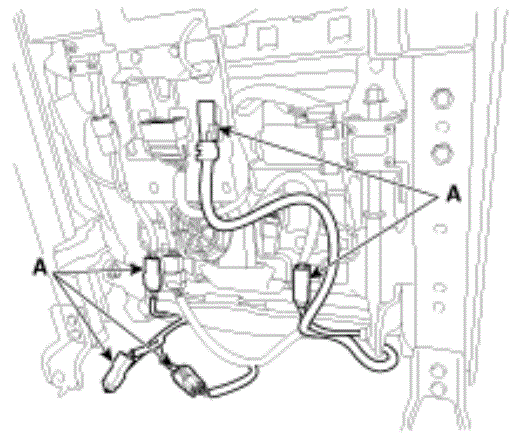

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

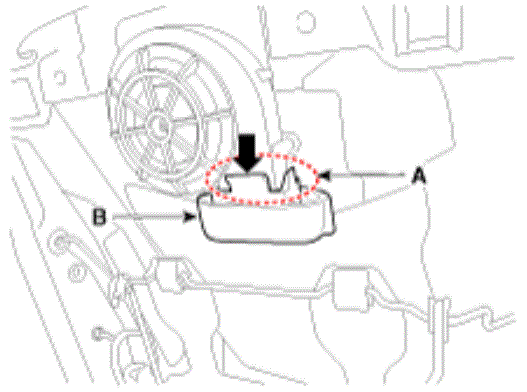

Detach the air ventilation seat back duct (B) by pulling the lock pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
Pull out the hooks (A) from the front seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.

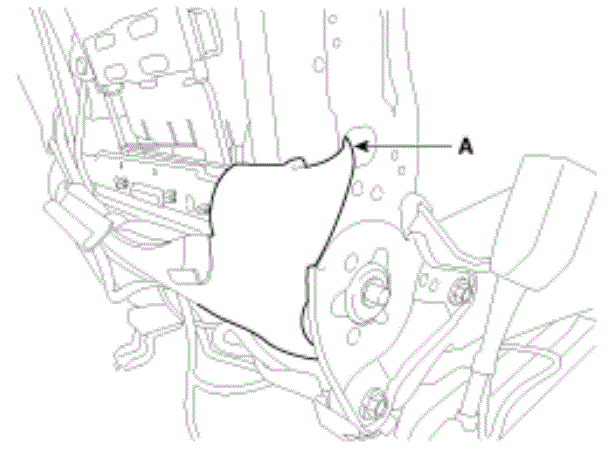

Remove the protectors (A) on both sides.

Courtesy of KIA MOTORS AMERICA, INC.

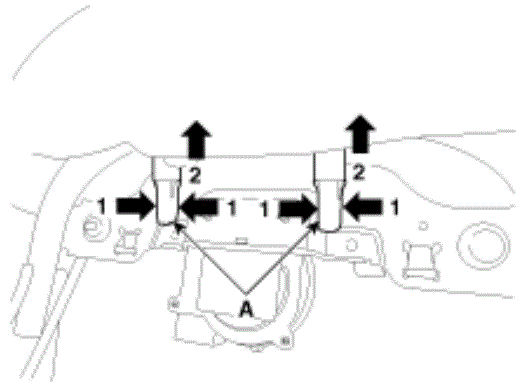

Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides.

Courtesy of KIA MOTORS AMERICA, INC.

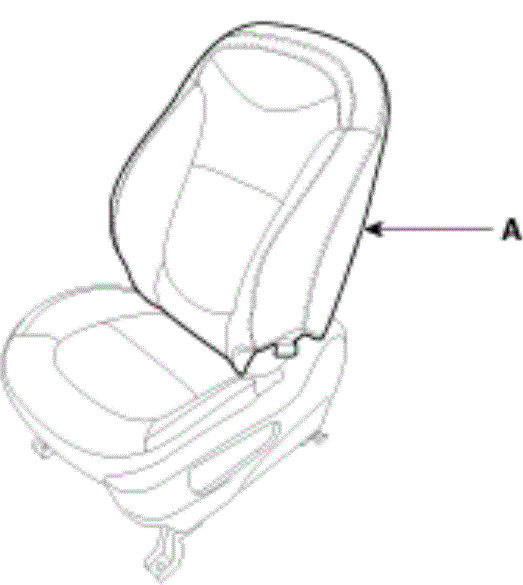

Remove the front seat back cover (A) from the front seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.
After removing the velcro tape (A) and hog-ring clips (B) on the front of seat back, remove the front seat back cover (C).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Courtesy of KIA MOTORS AMERICA, INC.
