WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

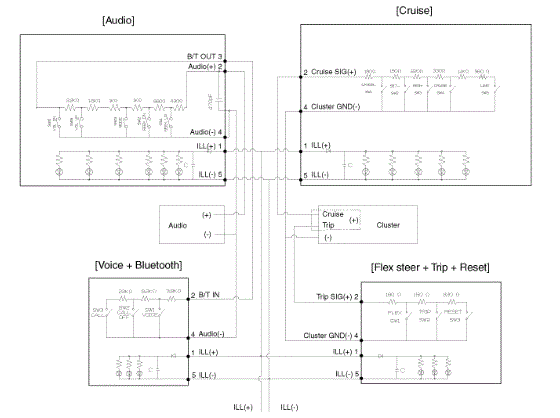

Fig 1: Audio Remote Control Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

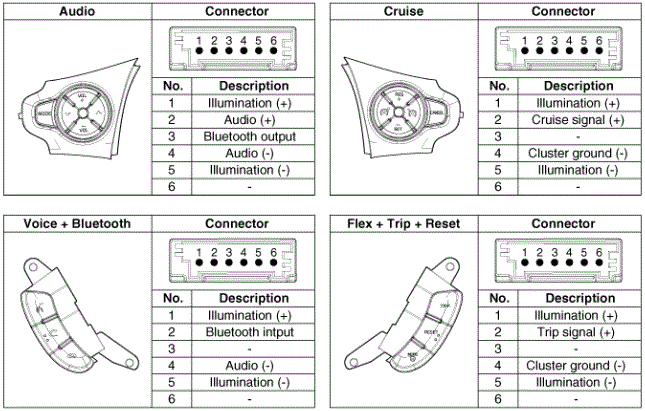

Fig 2: Audio Remote Control Connector Terminals Description Chart
