Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

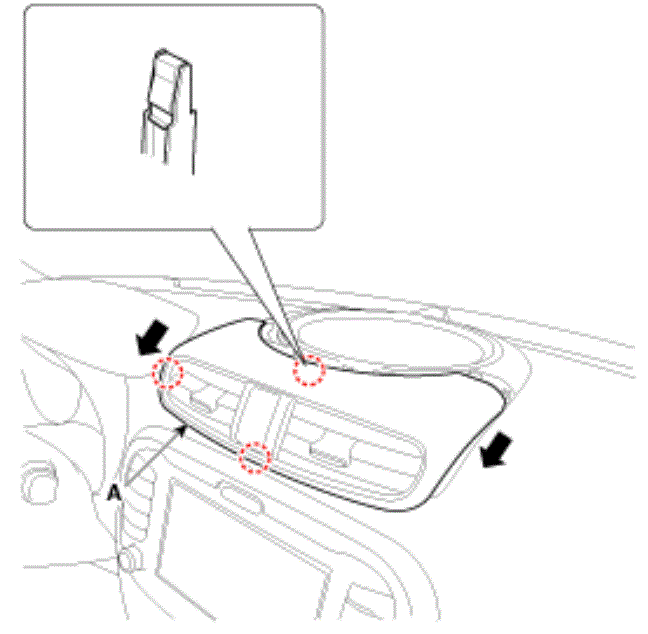

  2. Remove the center airvent assembly (A).
    G12821202Courtesy of KIA MOTORS AMERICA, INC.

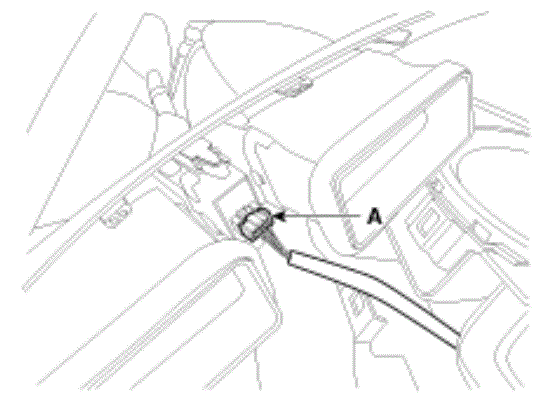

  3. Disconnect the connector (A) from the center airvent assembly.
    G12821203Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the hazard switch (A) from the center airvent assembly.
G12821204Courtesy of KIA MOTORS AMERICA, INC.
G12821205Courtesy of KIA MOTORS AMERICA, INC.
