Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.

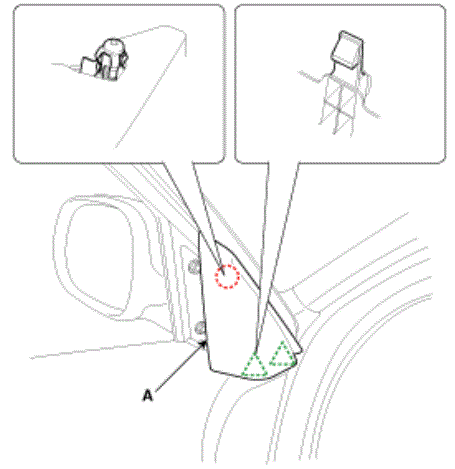

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

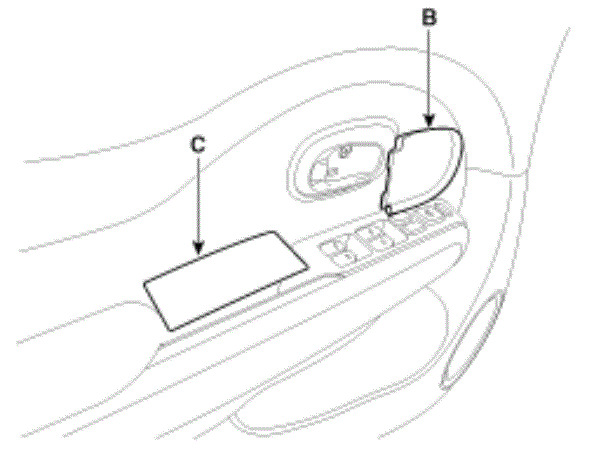

Using a flat-tip screwdriver (A), remove the front door inside handle cap (B) and front door pull cap (C).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

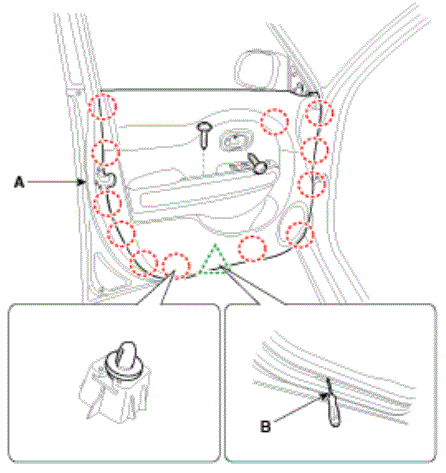

After loosening the mounting screws, remove the front door trim (A) using a flat-tip screwdriver (B).

Courtesy of KIA MOTORS AMERICA, INC.

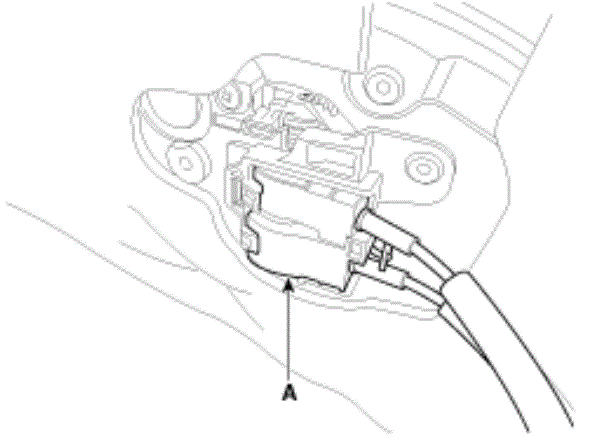

Remove the front door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

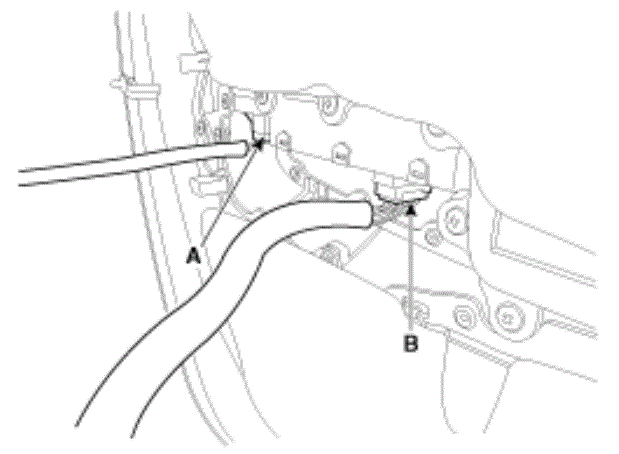

Disconnect the outside rear view mirror switch connector (A) and power window switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure that the connectors are connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
