Repair Procedures: Replacement

1. Remove the front door module.

   (Refer to "FRONT DOOR MODULE ")

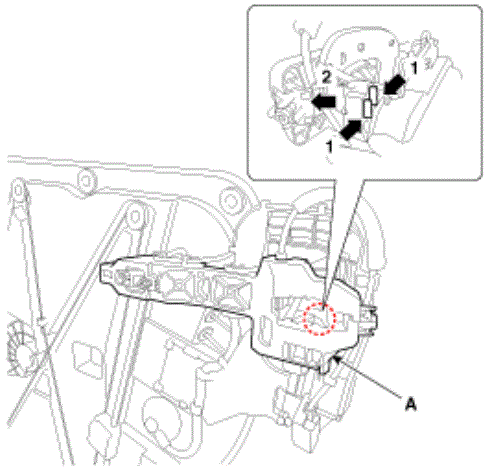

2. Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

   Courtesy of KIA MOTORS AMERICA, INC.

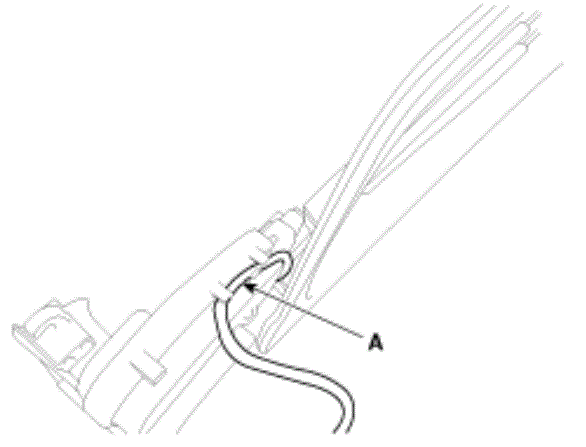

3. Remove the front door outside handle connector wiring harness (A).

   Courtesy of KIA MOTORS AMERICA, INC.

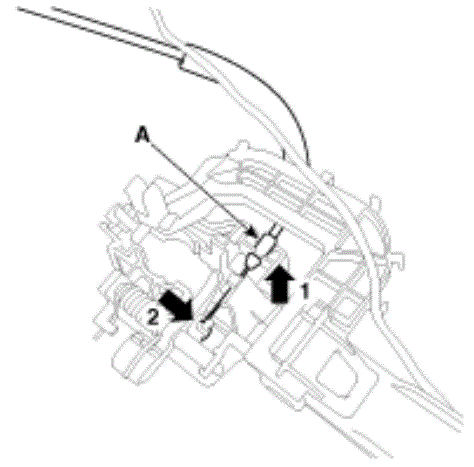

4. Remove the front door outside handle cable (A).

   Courtesy of KIA MOTORS AMERICA, INC.

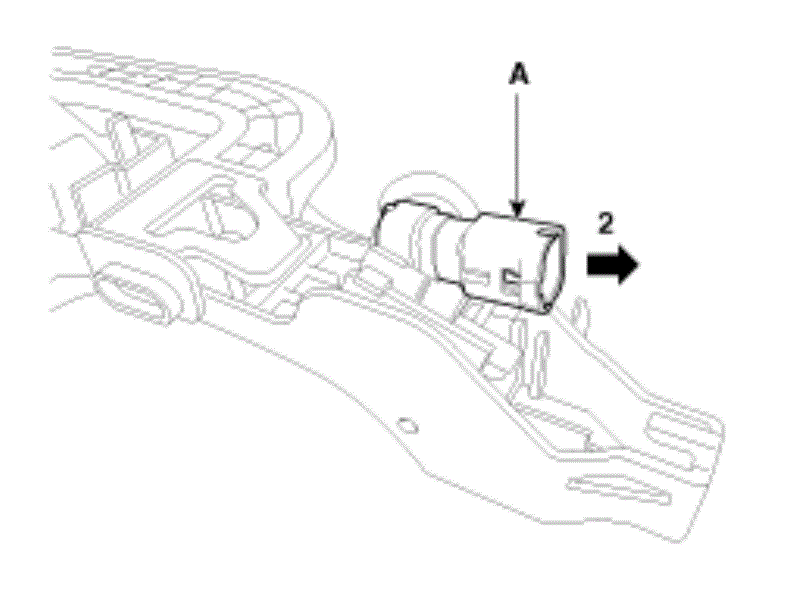

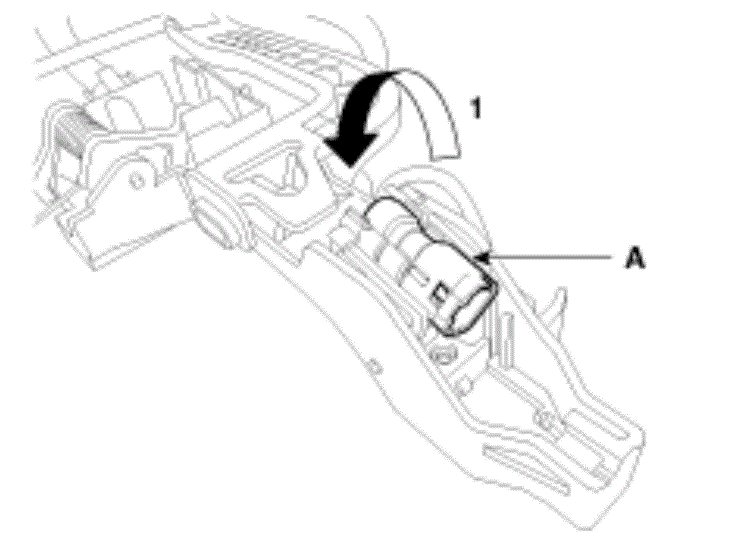

5. To remove the front door outside handle base connector (A), turn it counter clockwise and pull it forward.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

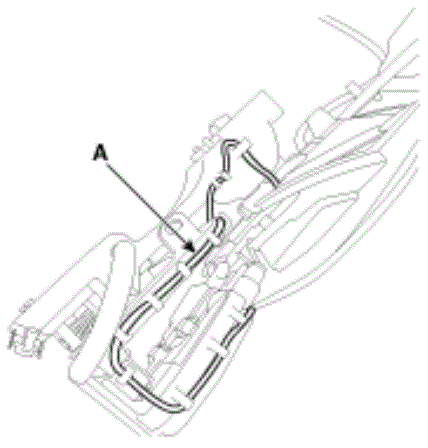

6. Remove the front door outside handle connector wiring harness (A).

   Courtesy of KIA MOTORS AMERICA, INC.

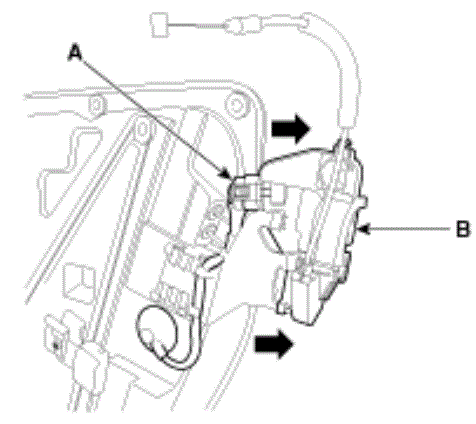

7. Disconnect the front door latch connector (A).
8. Remove the front door latch assembly (B) by pulling it in the direction of the arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

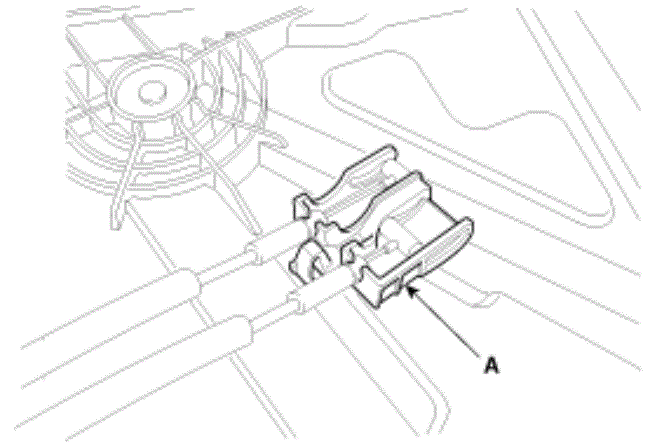

9. Remove the front door inside handle cage (A).

   Courtesy of KIA MOTORS AMERICA, INC.

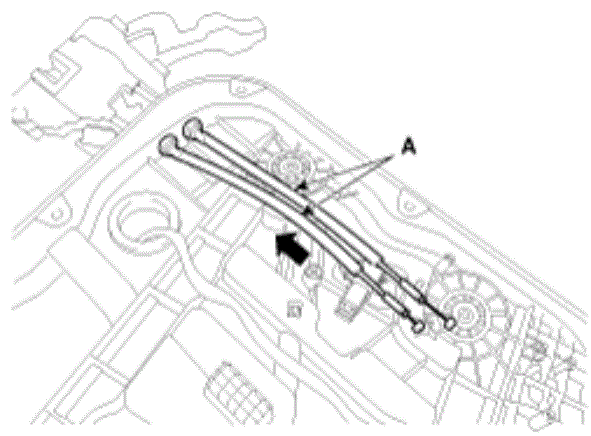

10. Remove the front door inside handle cable (A) by pushing it backward.

    Courtesy of KIA MOTORS AMERICA, INC.

11. Install in the reverse order of removal.

Information

• Make sure that the connectors are connected properly.
• Make sure that the door locks/unlocks and opens/closes properly.
• Replace any damaged clips.
