Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")

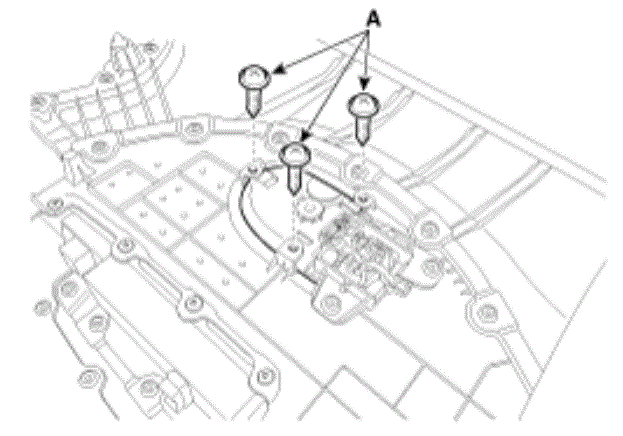

Loosen the front door inside handle mounting screws (A).

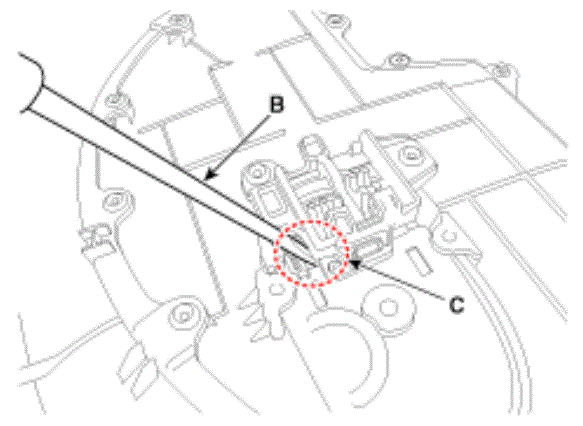

Using a flat-tip screwdriver (B), pull up the front door inside handle lock pin (C).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

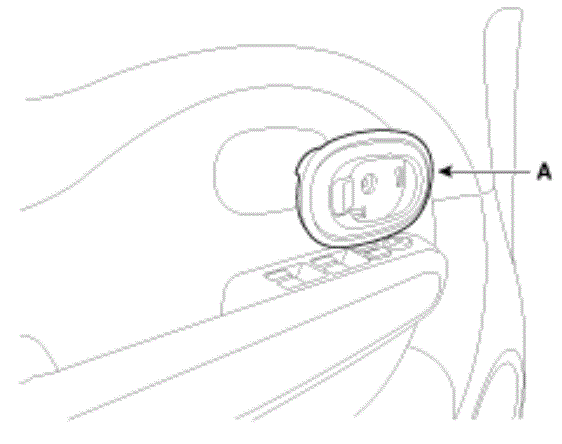

Remove the front door inside handle (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
