Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).

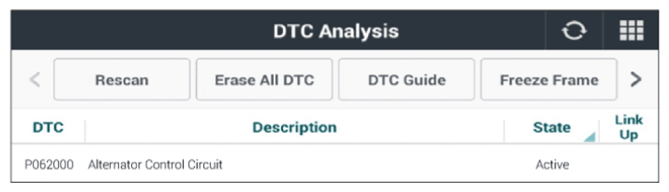

  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Figure
G12851326Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
