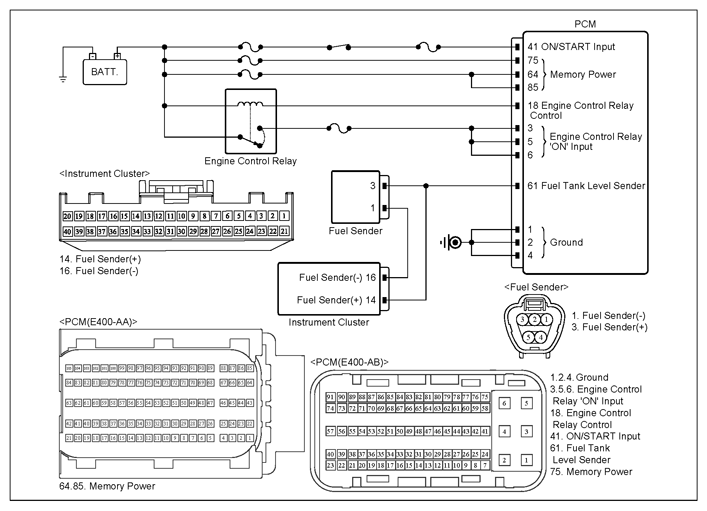

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect Fuel Sender and Fuel Pump Motor connector. Ignition "ON".	Fuel Sender and Fuel Pump Motor connector	1 (Fuel Sender -)	Chassis ground	-	Approx. 0V
	Fuel Sender and Fuel Pump Motor connector	3 (Fuel Sender +)	Chassis ground	-	Approx. 11.1V

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
