Removal and Installation
NOTE:

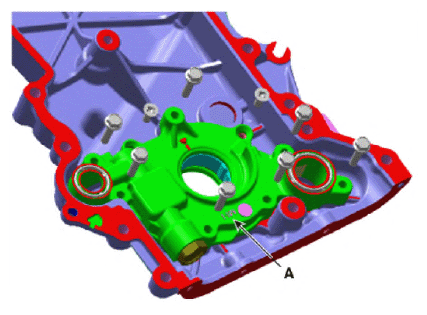

Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.
Courtesy of KIA MOTORS AMERICA, INC.
