Home >> Kia >> 2019 >> Forte EX >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> TJ Joint >> Components & Components Location >> Components

Components & Components Location: Components

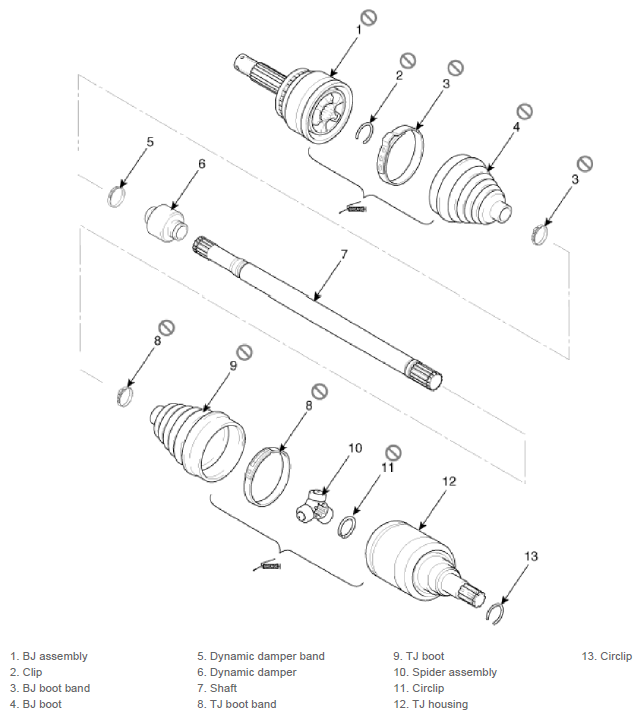

[RH]

G12830638

Courtesy of KIA MOTORS AMERICA, INC.

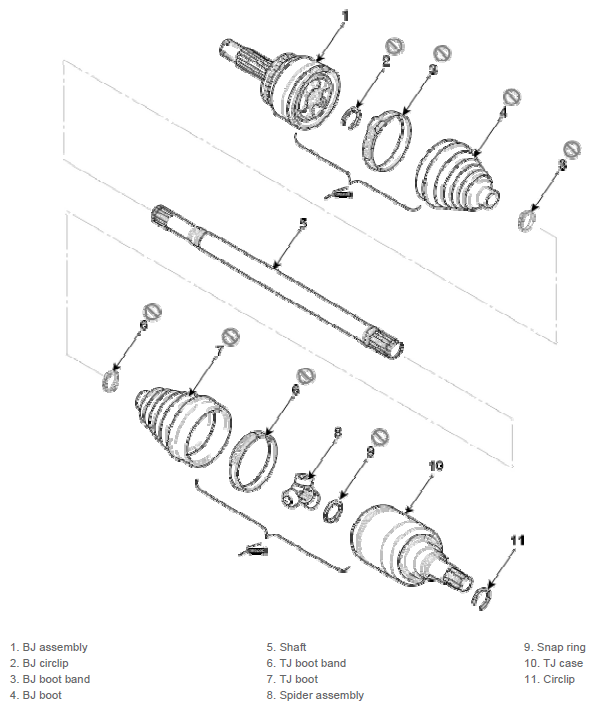

[LH]

G12830639

Courtesy of KIA MOTORS AMERICA, INC.
