Home >> Kia >> 2019 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Electrical >> Power Seat Control Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front seat outer shield cover.

    (Refer to Body - " FRONT SEAT OUTER SHIELD COVER  ")

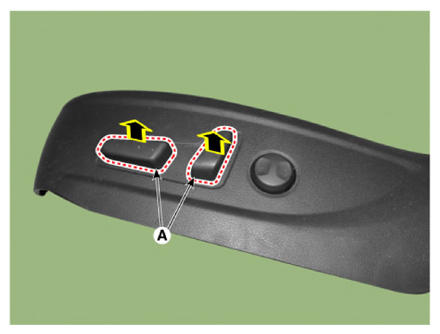

  2. Remove the knob (A) from the power seat control switch.
    G12832713Courtesy of KIA MOTORS AMERICA, INC.

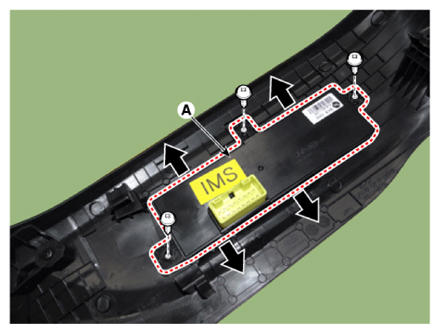

  3. Remove the power seat control switch (A) after loosening the screws.
    G12832714Courtesy of KIA MOTORS AMERICA, INC.
