Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center lower panel.
(Refer to Body - " CRASH PAD CENTER LOWER PANEL ")

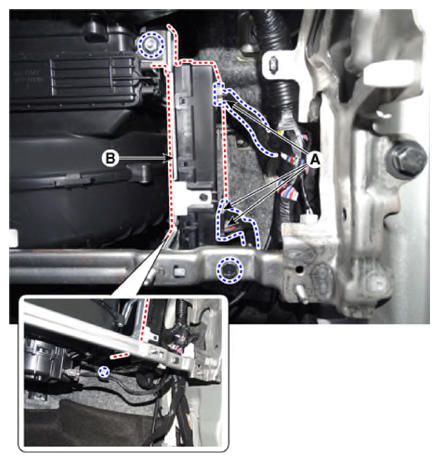

- Disconnect the connector (A), then remove the IBU (B) after loosening the bolt and nuts.
Tightening torque: 9.6 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)
