Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON", engine "ON" Gear Lever Position at "P"	Transmission Range Switch connector	6 (ground)	Transmission Range Switch connector	5 (power)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "P"	Transmission Range Switch connector	7 (S1)	Transmission Range Switch connector	8 (S2)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "R"	Transmission Range Switch connector	6 (ground)	Transmission Range Switch connector	5 (power)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "R"	Transmission Range Switch connector	6 (ground)	Transmission Range Switch connector	8 (S2)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "N"	Transmission Range Switch connector	7 (S1)	Transmission Range Switch connector	5 (power)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "N"	Transmission Range Switch connector	6 (ground)	Transmission Range Switch connector	8 (S2)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "D"	Transmission Range Switch connector	7 (S1)	Transmission Range Switch connector	5 (power)	Figure
Ignition "ON", engine "ON" Gear Lever Position at "D"	Transmission Range Switch connector	6 (ground)	Transmission Range Switch connector	8 (S2)	Figure

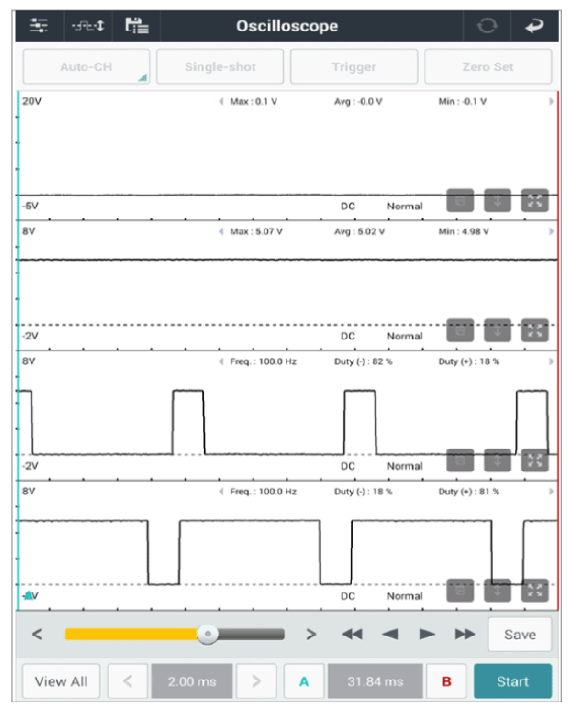

G12865139

Courtesy of KIA MOTORS AMERICA, INC.

G12865140

Courtesy of KIA MOTORS AMERICA, INC.

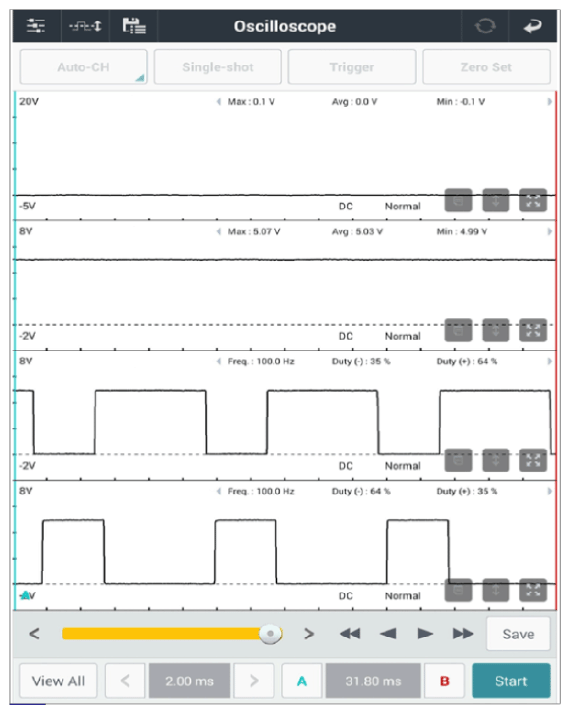

G12865141

Courtesy of KIA MOTORS AMERICA, INC.

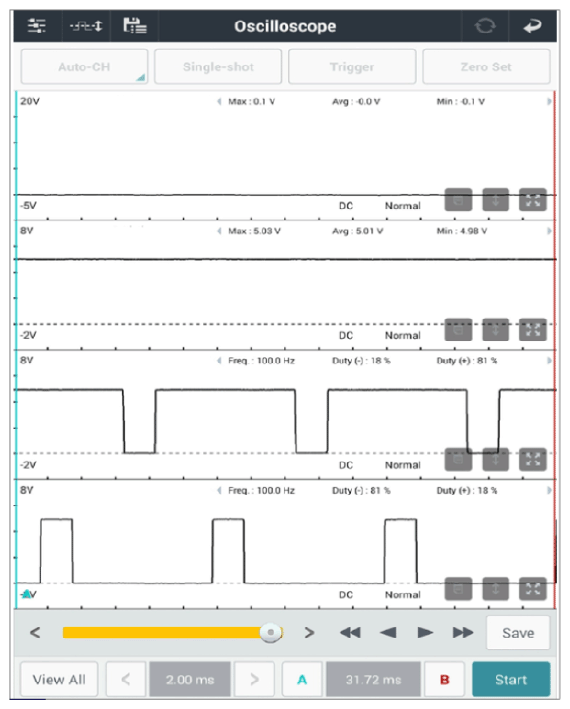

G12865142

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Check the alignment of shift cable. If problem occurs, align the cable and then go to "VERIFICATION OF REPAIR " procedure
If problem still occurs, replace TCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace Inhibitor Switch and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
