Circuit Inspection

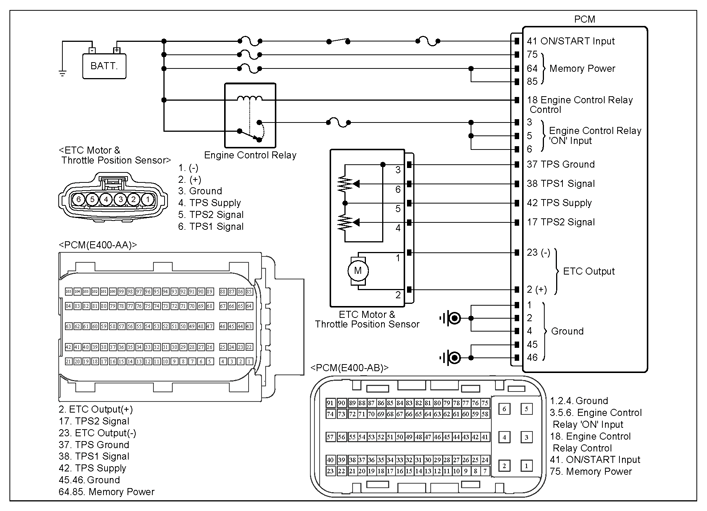

G12850902

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" 3 Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ETC Motor & TPS harness connector	5 (TPS Supply)	Chassis ground	-	Approx. 5V
	ETC Motor & TPS harness connector	6 (TPS.1 signal)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ETC Motor & TPS harness connector	6 (TPS.1 signal)	Chassis ground	-	∞ (Infinite)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
