Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - " OVERHEAD CONSOLE LAMP  ")

  3. Remove the handsfree mic (A) after loosening the screws.

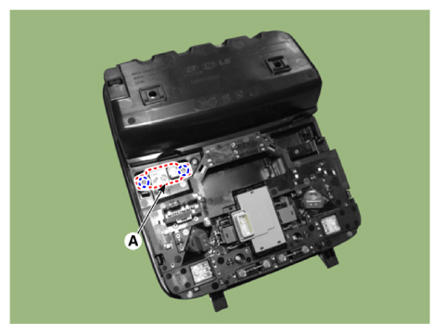

Fig 1: Locating Handsfree Mic With Screws
G12832269Courtesy of KIA MOTORS AMERICA, INC.
