Variant Coding

  1. Switch "OFF" the ignition.
  2. Connect the KDS to Data Link Connector (DLC).
  3. Switch "ON" the ignition.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".
  6. Perform variant coding.

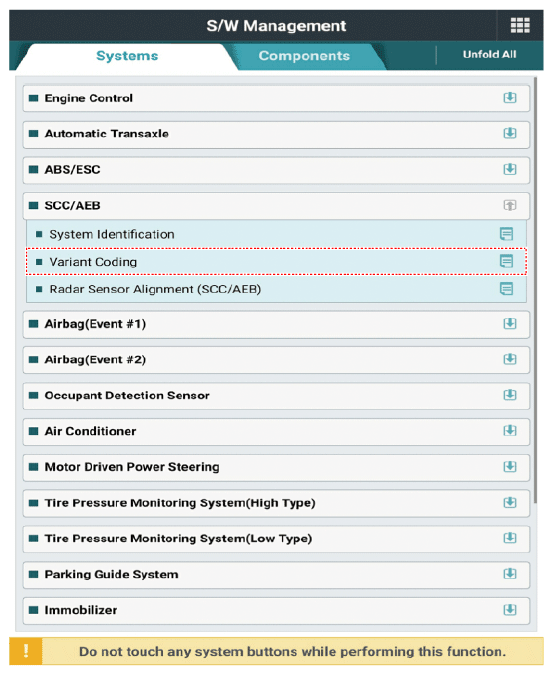

G12830120Courtesy of KIA MOTORS AMERICA, INC.

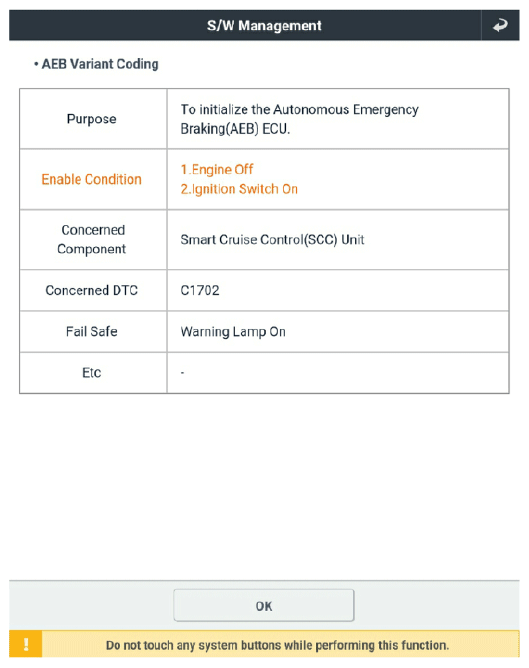

G12830121Courtesy of KIA MOTORS AMERICA, INC.

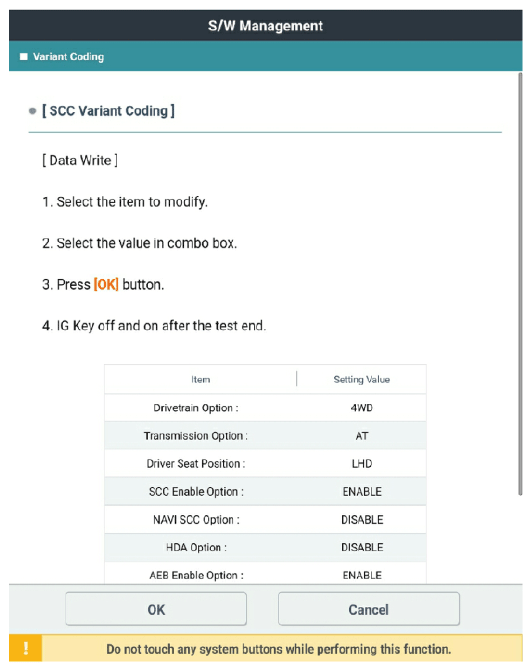

G12830122Courtesy of KIA MOTORS AMERICA, INC.
