Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

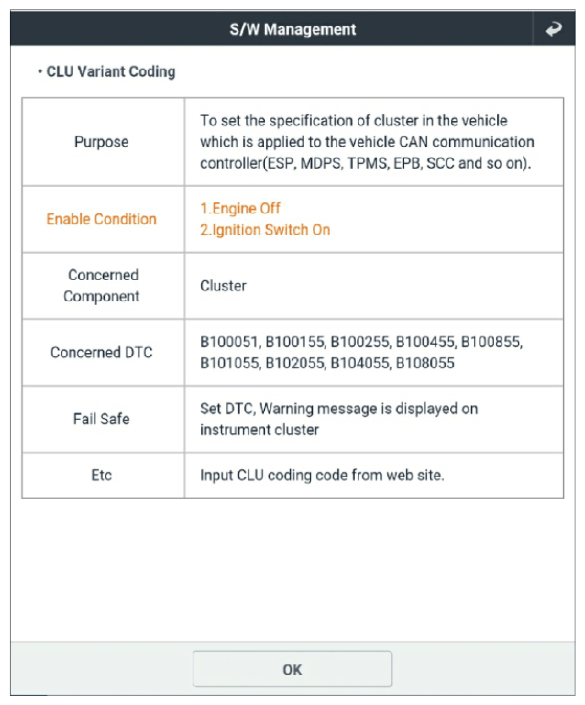

G12852996Courtesy of KIA MOTORS AMERICA, INC.

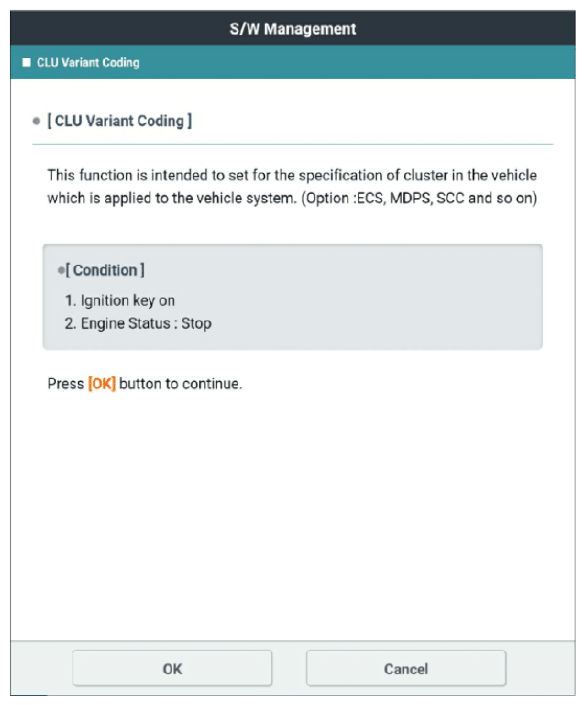

G12852997Courtesy of KIA MOTORS AMERICA, INC.

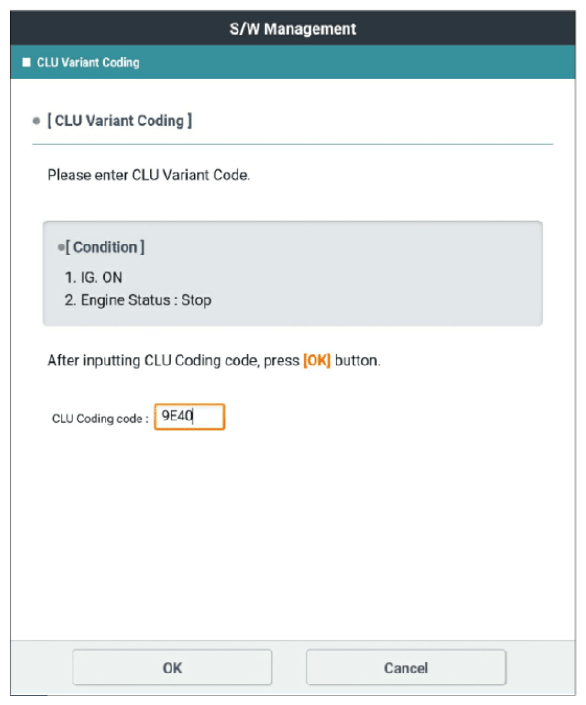

G12852998Courtesy of KIA MOTORS AMERICA, INC.

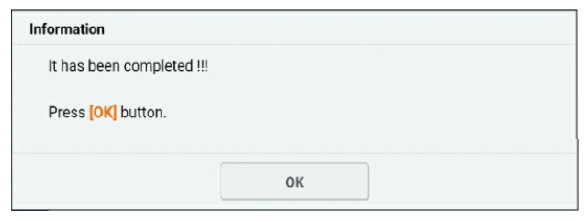

G12852999Courtesy of KIA MOTORS AMERICA, INC.

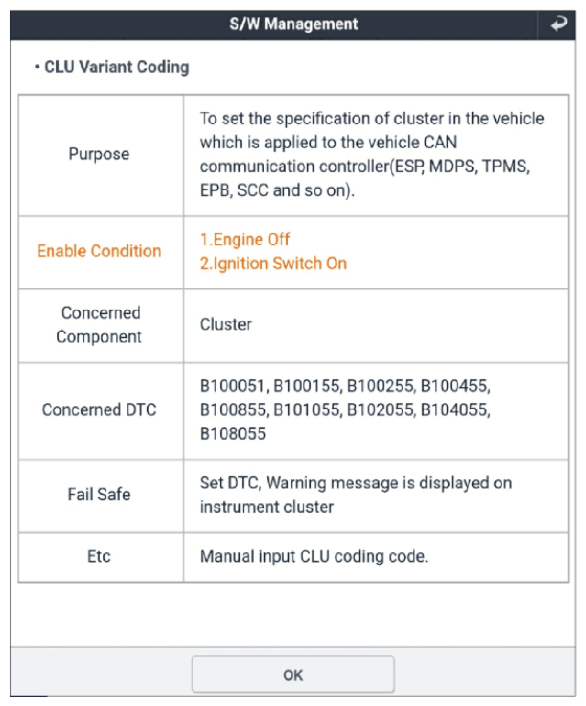

G12853000Courtesy of KIA MOTORS AMERICA, INC.

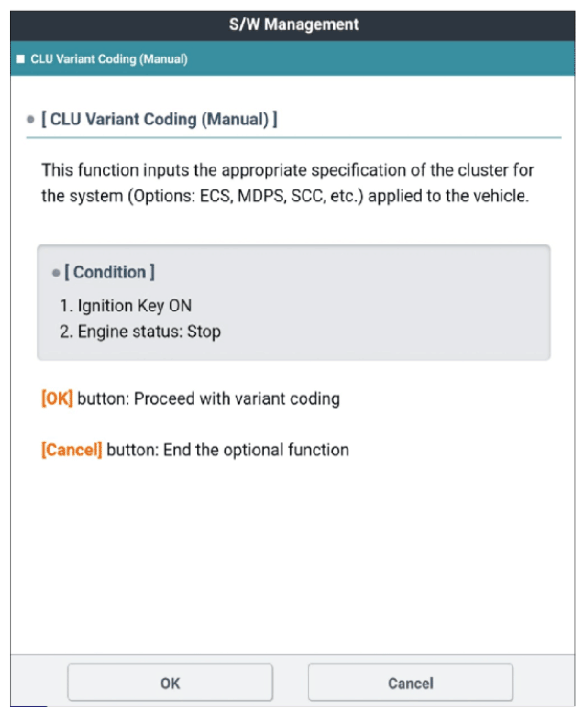

G12853001Courtesy of KIA MOTORS AMERICA, INC.

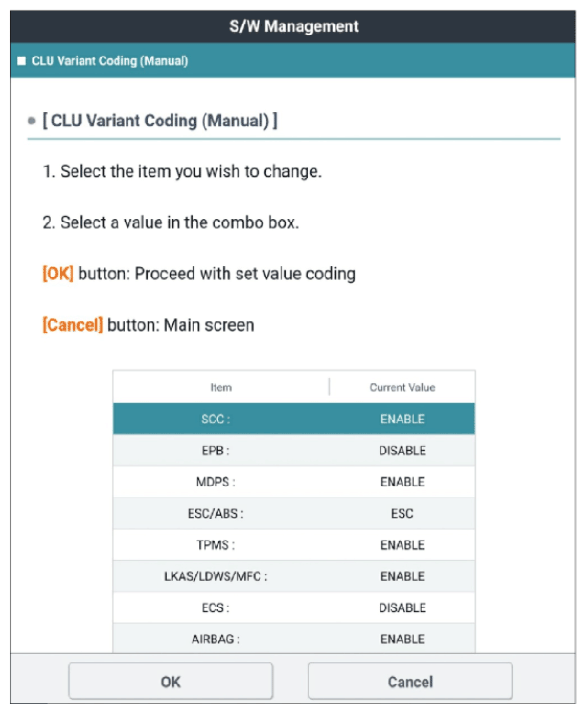

G12853002Courtesy of KIA MOTORS AMERICA, INC.

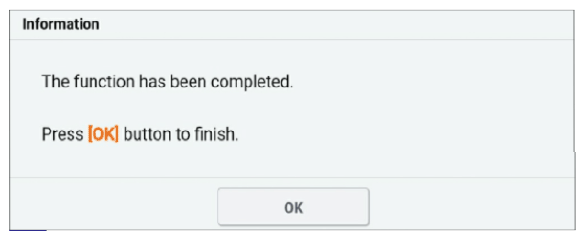

G12853003Courtesy of KIA MOTORS AMERICA, INC.
