Dust Cap

  1. Remove the dust cap cover.

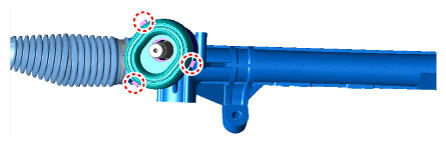

    Fig 1: Locating Dust Cap Cover
    G12294282Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the dust cap.

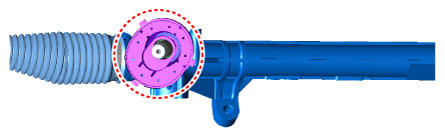

    Fig 2: Remove Dust Cap
    G12294283Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
