Repair Procedures: Replacement

Disconnect the battery negative cable.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector.

Fig 1: Locating Connector
Courtesy of KIA MOTORS AMERICA, INC.

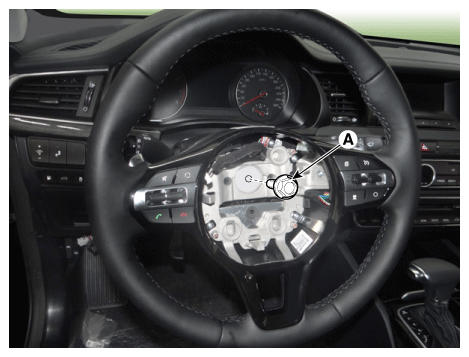

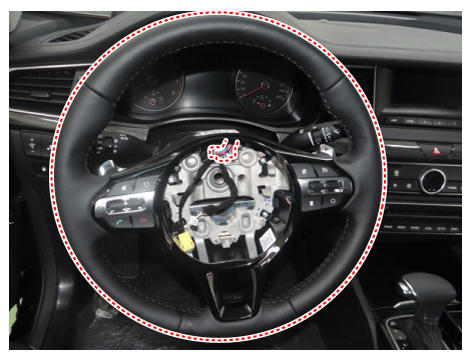

Remove the lock bolt (A) and remove the steering wheel.
Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Fig 2: Locating Lock Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.

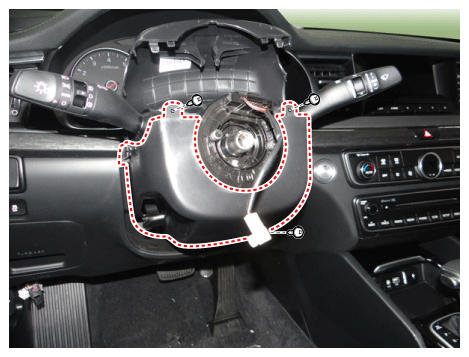

Loosen the shroud upper and lower screw and then remove the shroud.

Fig 3: Locating Shroud Upper & Lower Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

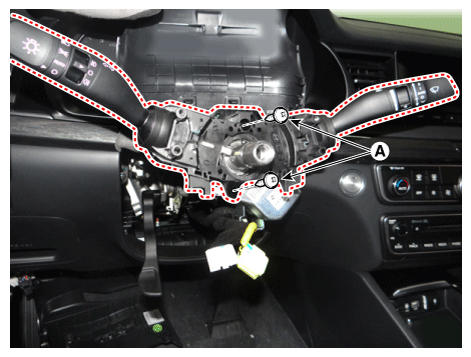

Loosen the screw (A) and disconnect the connector (B) to remove the multifunction switch.

Fig 4: Locating Multifunction Switch Screws
Courtesy of KIA MOTORS AMERICA, INC.

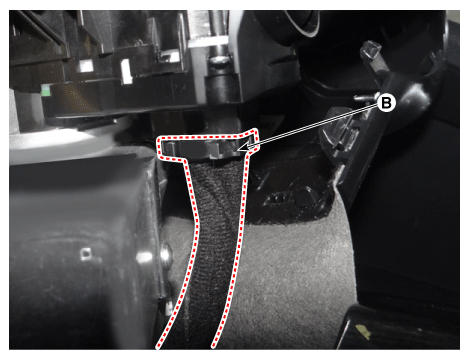

Fig 5: Locating Multifunction Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad.
(Refer to Body (Interior and Exterior) - "CRASH PAD ")
Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) ")

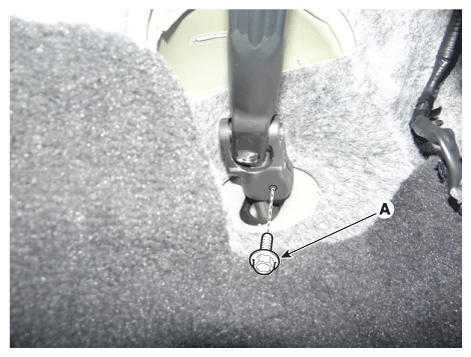

Remove the universal joint bolt (A).
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

Fig 6: Locating Universal Joint Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Keep the neutral-range to prevent damaging the clock spring inner cable when steering the wheel.
- Do not reuse the bolt.
Disconnect the MDPS connector.

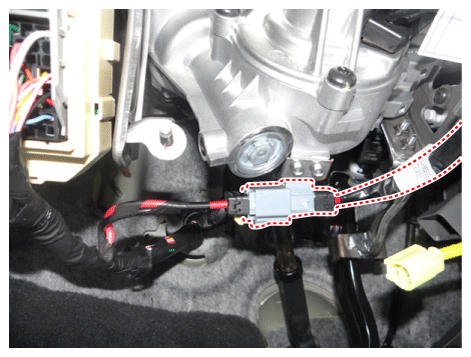

Fig 7: Locating MDPS Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

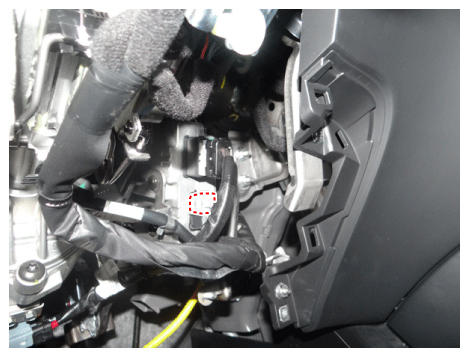

Fig 8: Locating MDPS Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

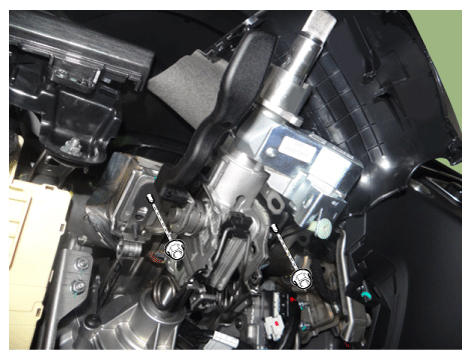

Loosen the steering column nuts.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Fig 9: Locating Steering Column Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake switch.
(Refer to Brake System - "STOP LAMP SWITCH ")

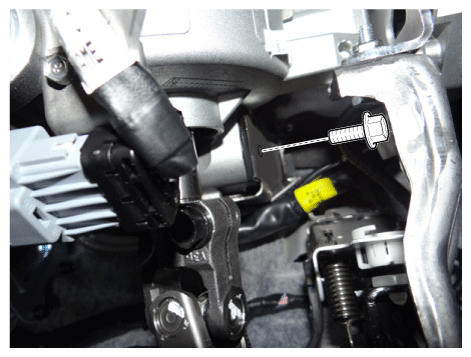

Loosen the steering column bolt and then remove the steering column.
Tightening torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

Fig 10: Loosening Locating Steering Column Bolt
Courtesy of KIA MOTORS AMERICA, INC.
