Perform VIS (Bank 2) Actuation Test

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Perform "ACTUATION TEST " for "Variable Intake Solenoid (Option)"
Specification: Refer to Fig 1

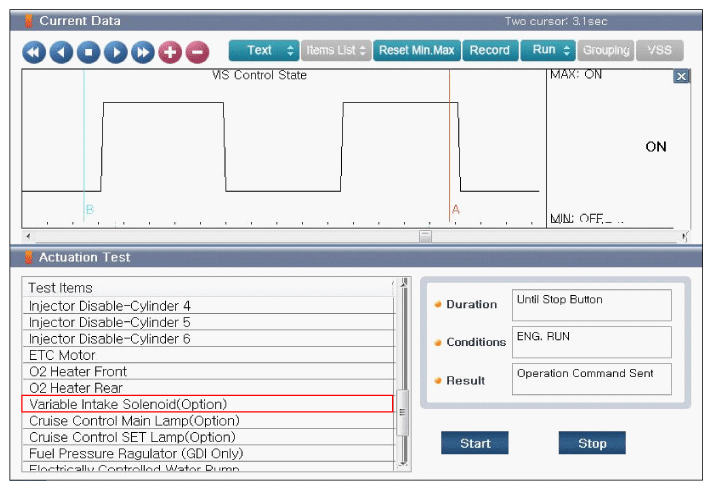

Fig 1: Scantool Display - Variable Intake Solenoid (Option) Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
Does the VIS operate properly? (Check variation)
YES
- Go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "INSPECT VIS #2 " procedure.
