Variable Force Solenoid (VFS) [Bank 1/Intake]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

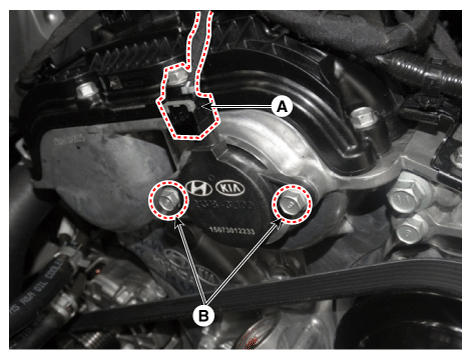

- Disconnect the VFS connector (A).
- Remove the mounting bolts (B), and then remove the VFS from the engine.
Variable force solenoid mounting bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
