Repair Procedures: Removal

Set No. 1 cylinder to TDC/compression.

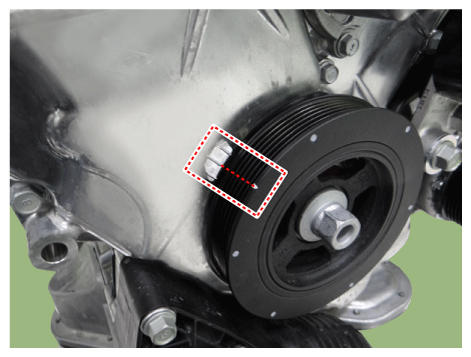

1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

  Fig 1: Align Groove With Timing Mark T Of Lower Timing Chain Cover
  Courtesy of KIA MOTORS AMERICA, INC.

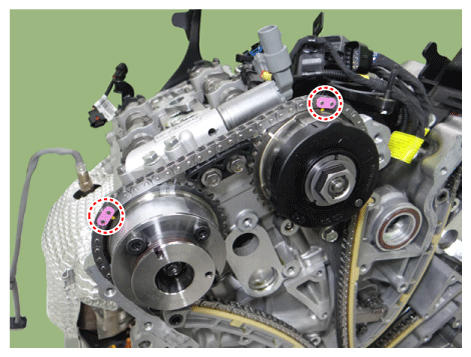

2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as displayed below. If not, turn the crankshaft clockwise one revolution (360°).

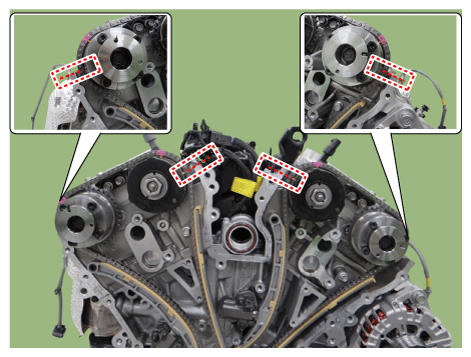

Fig 2: Check Mark Of Camshaft Timing Sprockets In Straight Line On Cylinder Head Surface
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not rotate engine counterclockwise.
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

NOTE: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.

NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.

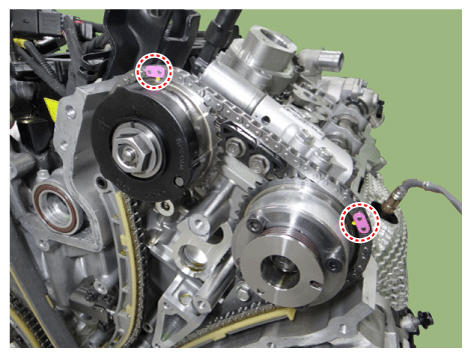

Fig 3: Timing Chain Mark (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

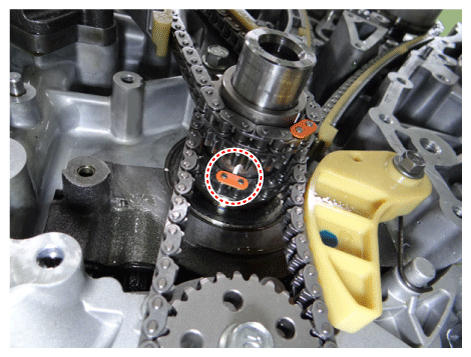

Fig 4: Timing Chain Mark (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Timing Chain Mark (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Timing Chain Mark (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

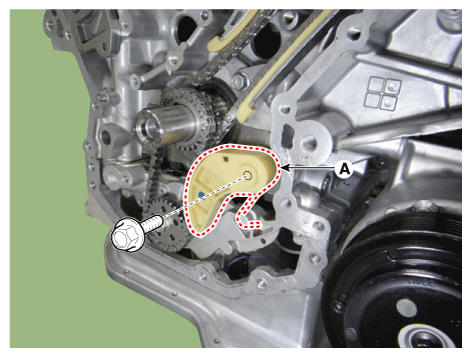

Remove the oil pump chain tensioner assembly (A).

Fig 7: Locating Oil Pump Chain Tensioner Assembly With Bolt
Courtesy of KIA MOTORS AMERICA, INC.

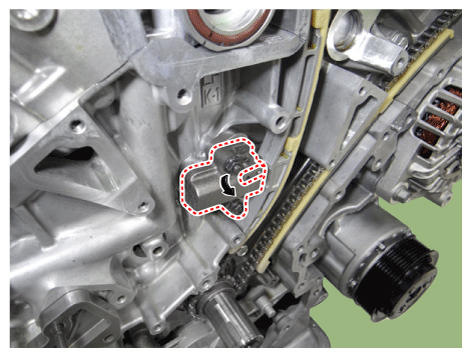

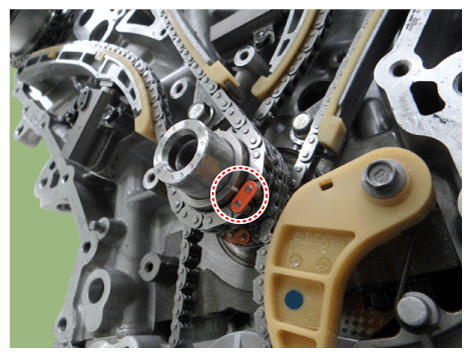

Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.

Fig 8: Insert Stopper Pin Into Hole On Ratchet
Courtesy of KIA MOTORS AMERICA, INC.

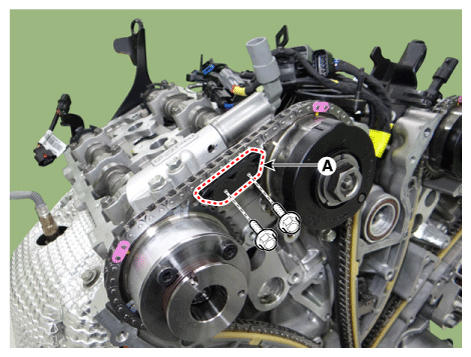

Remove the RH timing chain cam to cam guide (A).

Fig 9: Locating RH Timing Chain Cam To Cam Guide
Courtesy of KIA MOTORS AMERICA, INC.

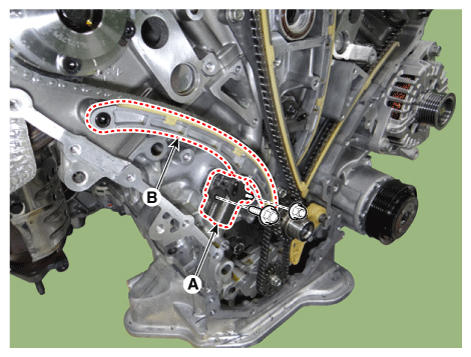

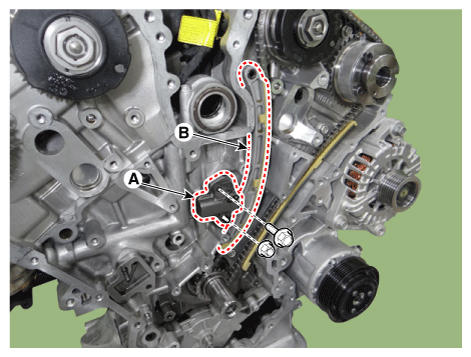

Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).

Fig 10: Locating RH Timing Chain Auto Tensioner & RH Timing Chain Tensioner Arm With Bolts
Courtesy of KIA MOTORS AMERICA, INC.

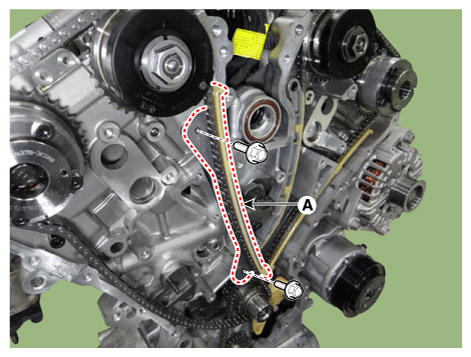

Remove the RH timing chain guide (A).

Fig 11: Locating RH Timing Chain Guide With Bolts
Courtesy of KIA MOTORS AMERICA, INC.

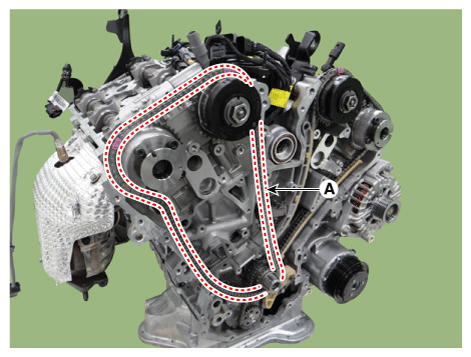

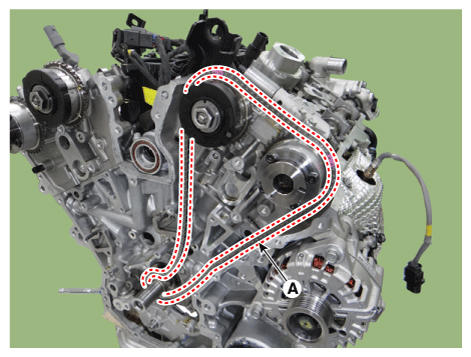

Remove the RH timing chain (A).

Fig 12: Locating RH Timing Chain
Courtesy of KIA MOTORS AMERICA, INC.

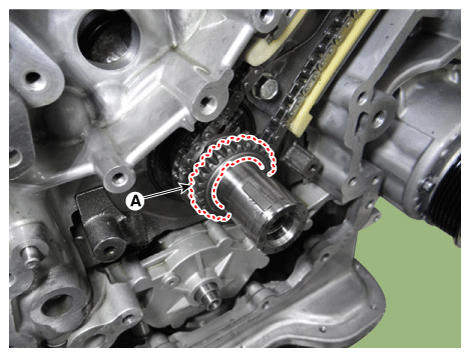

Remove the crankshaft sprocket (A) (RH camshaft drive).

Fig 13: Locating Crankshaft Sprocket (RH Camshaft Drive)
Courtesy of KIA MOTORS AMERICA, INC.

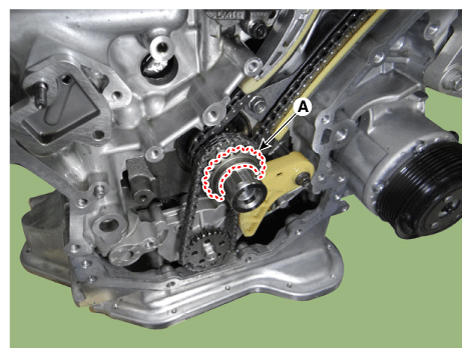

Remove the oil pump chain sprocket (A) and oil pump chain (B).

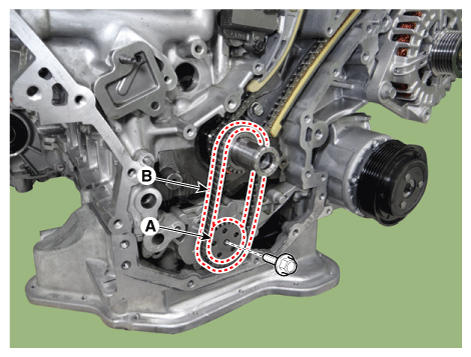

Fig 14: Locating Oil Pump Chain Sprocket & Oil Pump Chain With Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crankshaft sprocket (A) (Oil pump drive).

Fig 15: Locating Crankshaft Sprocket (Oil Pump Drive)
Courtesy of KIA MOTORS AMERICA, INC.

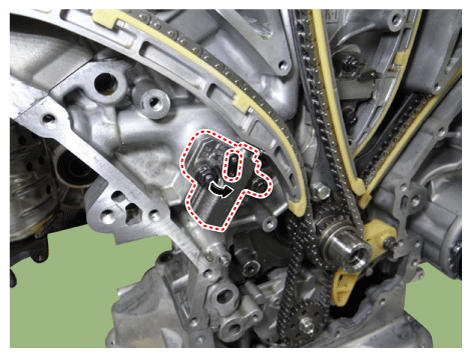

Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.

Fig 16: Insert Stopper Pin Into Hole On Ratchet
Courtesy of KIA MOTORS AMERICA, INC.

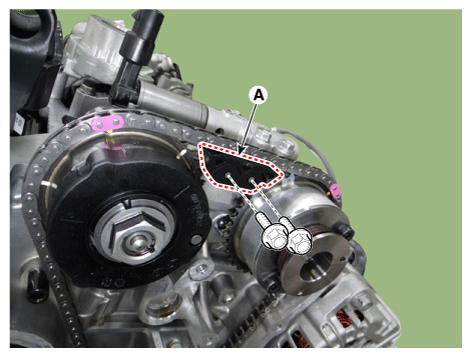

Remove the LH timing chain cam to cam guide (A).

Fig 17: Locating LH Timing Chain Cam To Cam Guide With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

Fig 18: Locating LH Timing Chain Auto Tensioner & LH Timing Chain Tensioner Arm With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH timing chain guide (A).

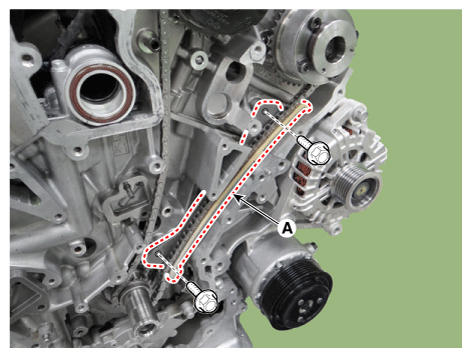

Fig 19: Locating LH Timing Chain Guide With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH timing chain (A).

Fig 20: Locating LH Timing Chain
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crankshaft sprocket (A). (LH camshaft drive).

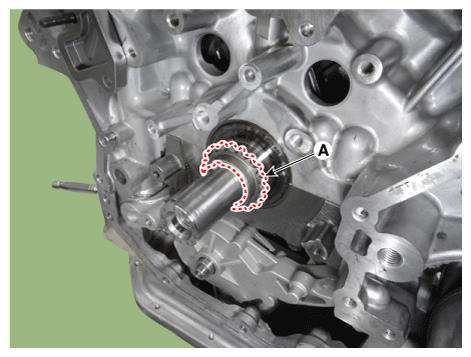

Fig 21: Locating Crankshaft Sprocket (LH Camshaft Drive)
Courtesy of KIA MOTORS AMERICA, INC.

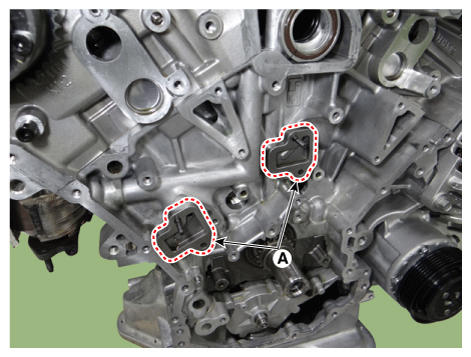

Remove the tensioner adapter assembly (A).

Fig 22: Locating Tensioner Adapter Assembly

G12290401
