Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & A/C control unit.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

  3. Remove the interior 1 antenna (A) after loosening the mounting screws and disconnecting the connector.

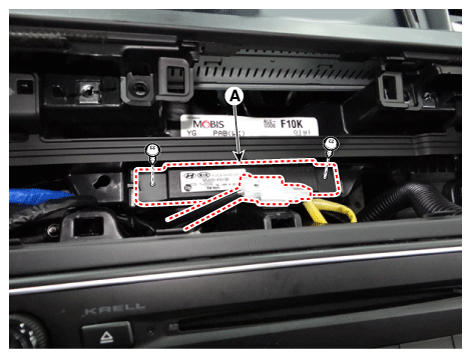

    Fig 1: Locating Interior 1 Antenna With Mounting Screws
    G12298939Courtesy of KIA MOTORS AMERICA, INC.
