FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

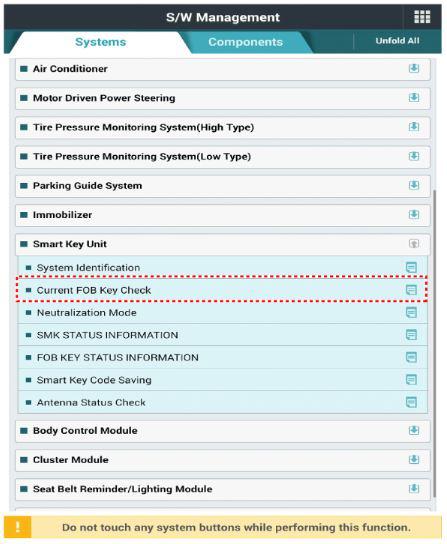

Fig 1: Screen Display - Select Current FOB Key Check
G00581114Courtesy of KIA MOTORS AMERICA, INC.

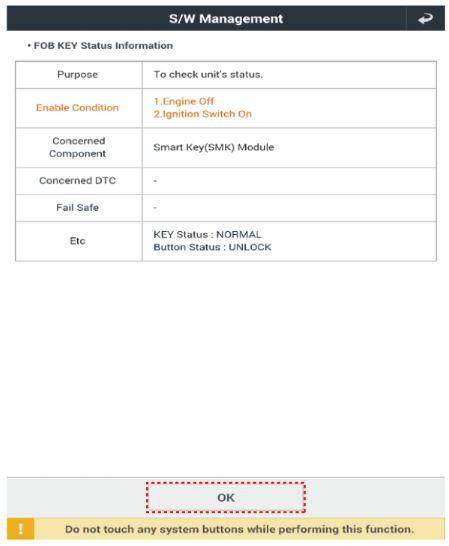

Fig 2: Screen Display - FOB Key Status
G00581115Courtesy of KIA MOTORS AMERICA, INC.

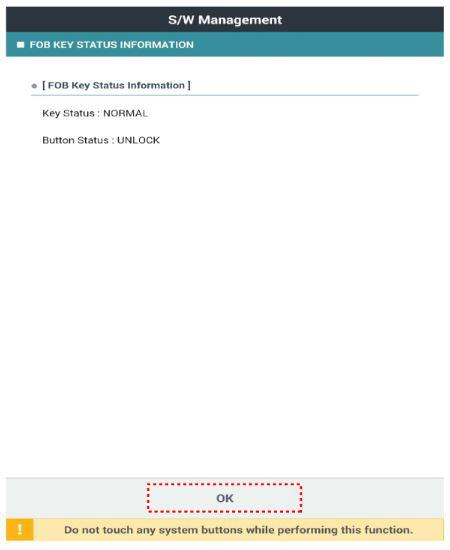

Fig 3: Screen Display - FOB Key Information
G00581116Courtesy of KIA MOTORS AMERICA, INC.
