Repair Procedures: Inspection: Notes

  1. Check the plated parts of the limiter & hub assembly (A) for color changes, peeling or other damage. If there is damage, replace the assembly.
  2. Check the pulley (B) bearing play and drag by rotating the pulley by hand. Replace the pulley with a new one if it is noisy or has excessive play/drag.

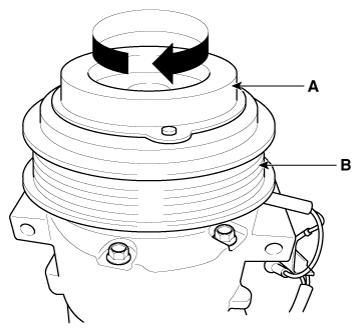

Fig 1: Inspect Plated Parts Of Limiter & Hub Assembly For Color Changes, Peeling Or Other Damage
G12288353Courtesy of KIA MOTORS AMERICA, INC.
