Signal Waveform & Data

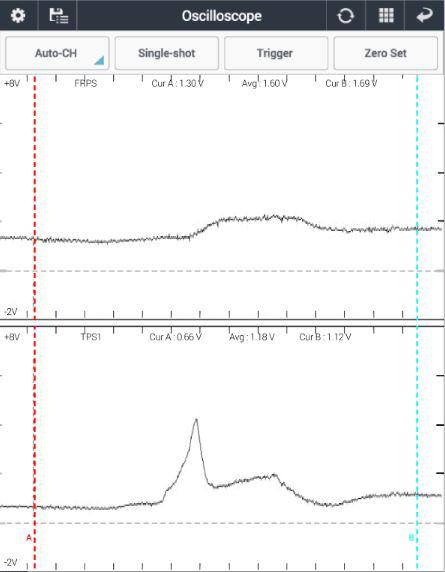

Fig 1: Screen Display - Normal Waveforms Of RPS During Acceleration
G12284439Courtesy of KIA MOTORS AMERICA, INC.

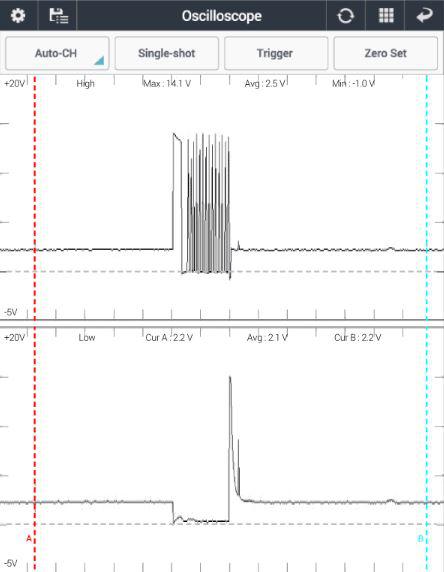

Fig 2: Screen Display - Normal Waveforms Of FPCV At Engine Idle
G12284440Courtesy of KIA MOTORS AMERICA, INC.

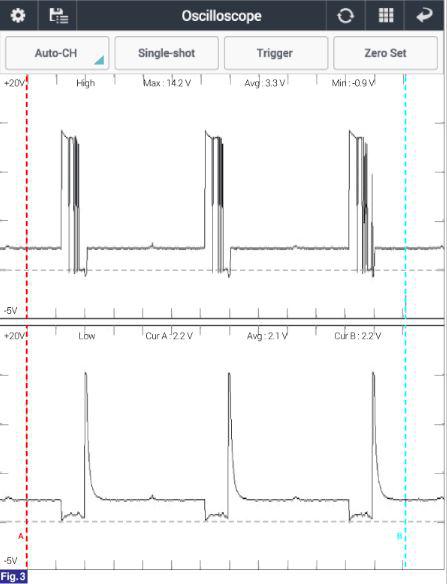

Fig 3: Screen Display - Normal Waveforms Of FPCV At Approx. 2000 RPM
G12284441Courtesy of KIA MOTORS AMERICA, INC.
