Monitor KDS/GDS Data

  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Turn the steering wheel.
  5. Monitor "Steering Angle Sensor" parameter in "Current Data" with KDS/GDS.

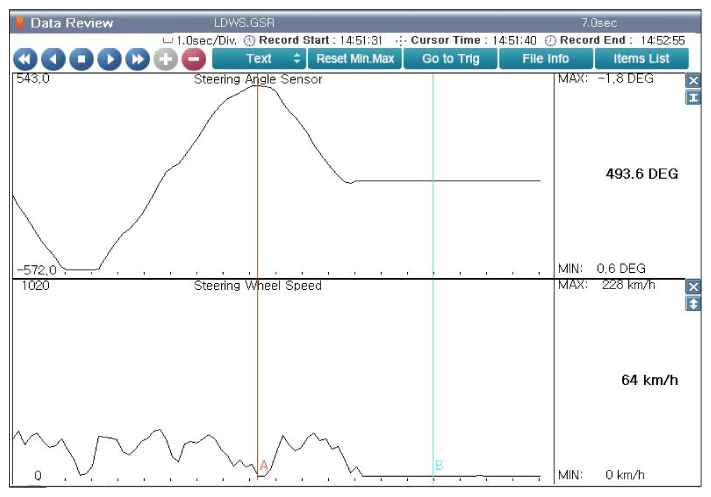

    Fig 1: Scantool Display - Current Data Of Steering Angle Sensor On Steering Wheel Activated
    G12280535Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

    NO

    • Go to "WIRING INSPECTION" procedure below.
