Drive Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left luggage side trim after opening the trunk.

    (Refer to Body - "TRUNK TRIM ")

  3. Disconnect the drive unit connectors (A).

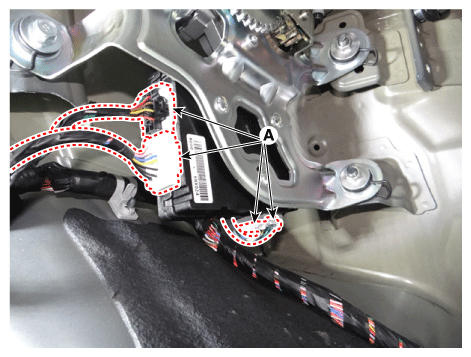

    Fig 1: Locating Drive Unit Connectors
    G12298822Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the drive unit mounting clip (A).

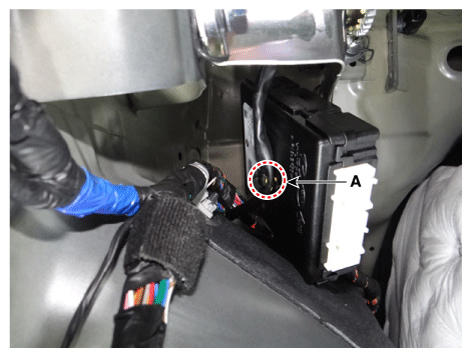

    Fig 2: Locating Drive Unit Mounting Clip
    G12298823Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the drive unit (A) after loosening the mounting screws.

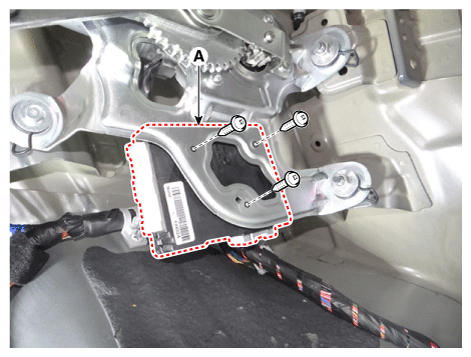

    Fig 3: Locating Drive Unit Mounting With Screws
    G12298824Courtesy of KIA MOTORS AMERICA, INC.
