Repair Procedures: Removal

  1. Turn the ignition switch OFF.

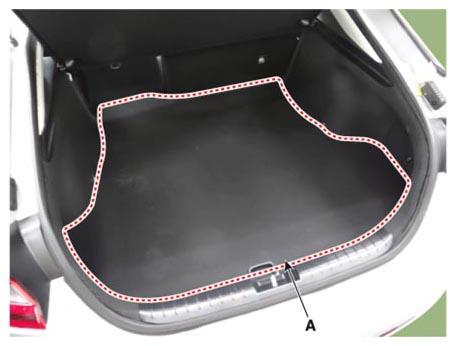

  2. Remove the luggage covering (A).
    G12803278Courtesy of KIA MOTORS AMERICA, INC.

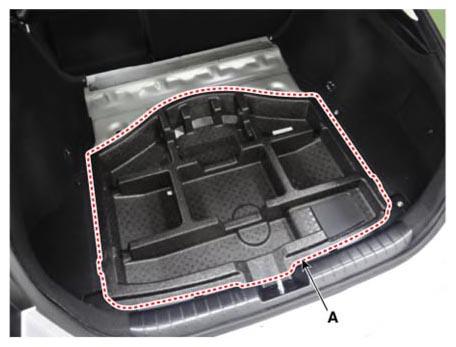

  3. Remove the luggage center tray (A).
    G12803279Courtesy of KIA MOTORS AMERICA, INC.

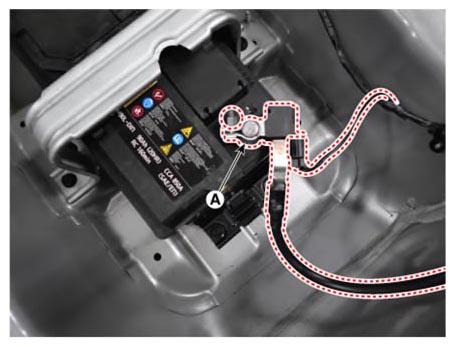

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G12803280Courtesy of KIA MOTORS AMERICA, INC.

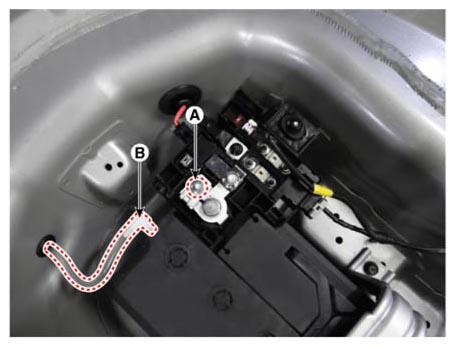

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G12803281Courtesy of KIA MOTORS AMERICA, INC.

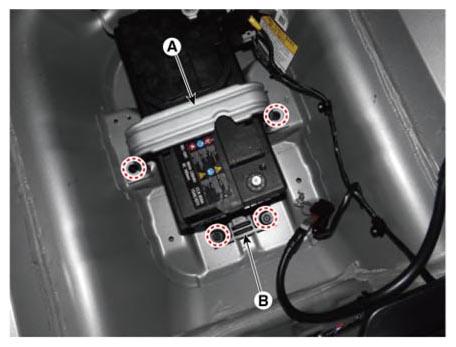

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G12803282Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the battery.
