Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the turbo manifold module.

    (Refer to " TURBO MANIFOLD MODULE  ")

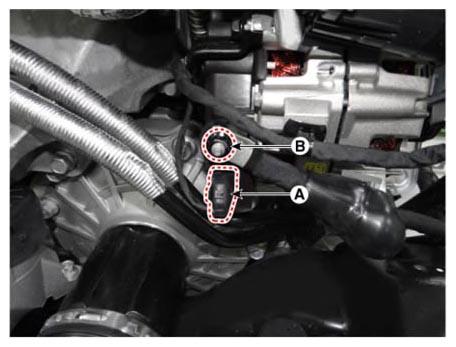

  3. Disconnect the alternator connector (A), and remove the cable (B) from alternator "B" terminal.
    G12803261Courtesy of KIA MOTORS AMERICA, INC.

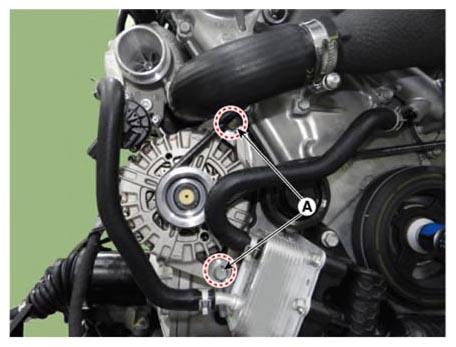

  4. Remove the alternator bolts (A).
    G12803262Courtesy of KIA MOTORS AMERICA, INC.

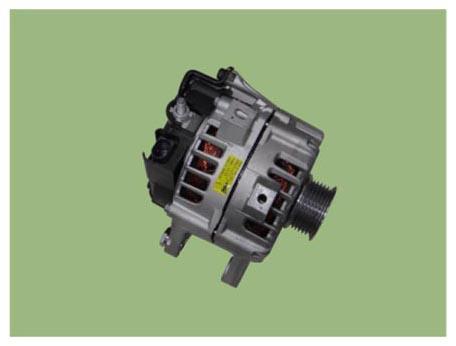

    G12803263Courtesy of KIA MOTORS AMERICA, INC.
