Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the luggage side trim.

    (Refer to " LUGGAGE SIDE TRIM  ")

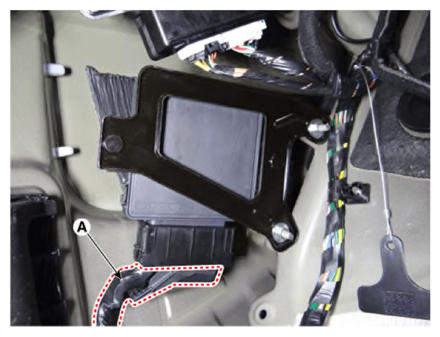

  3. Disconnect the ECS control unit connector (A).
    G12789999Courtesy of KIA MOTORS AMERICA, INC.

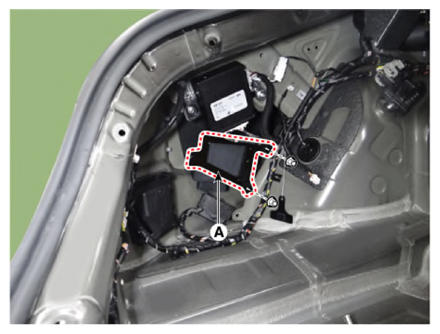

  4. Loosen the ECS control unit bracket nut and then remove the ECS control unit (A).
G12790000Courtesy of KIA MOTORS AMERICA, INC.
