Repair Procedures: Replacement: [2WD]

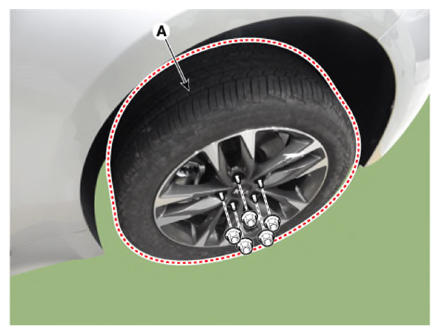

  1. Remove wheel nuts, front wheel and tire (A) from hub.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

    G12790077Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to damage the wheel bolts when removing the wheel and tire (A).

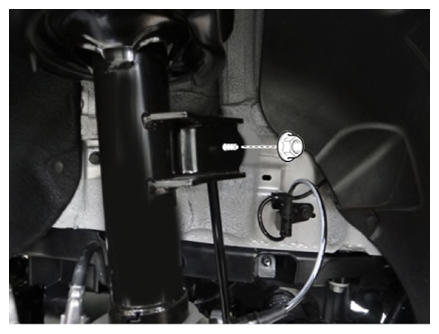

  2. Loosen the nut and then separate the stabilizer link from the front shock absorber.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G12790078Courtesy of KIA MOTORS AMERICA, INC.

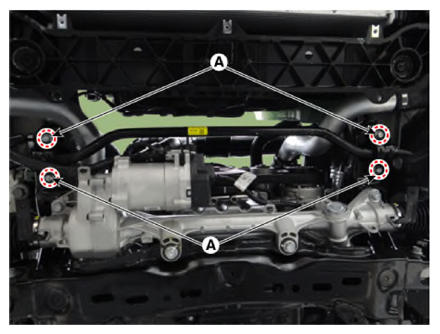

  3. Loosen the bolts (A) and then remove the stabilizer bar.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G12790079Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the engine room side cover.

    G 2.0 T-GDI THETA II (Refer to " ENGINE ROOM UNDER COVER  ")

    G 3.3 T-GDI LAMBDA II (Refer to " ENGINE ROOM UNDER COVER  ")

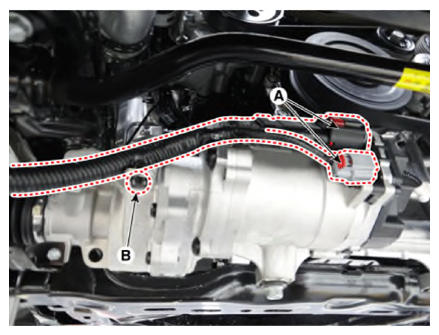

  5. Disconnect the R-MDPS connector (A) and clip (B).
    G12790080Courtesy of KIA MOTORS AMERICA, INC.

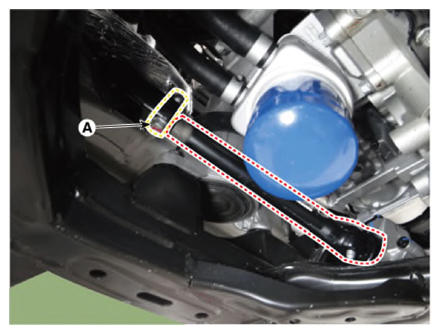

  6. Loosen the shaft joint bolt (A) and then separate the shaft joint.

    Tightening torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

    G12790081Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Keep the steering wheel in a neutral position. Moving the steering wheel may damage the cable inside the clock spring.
    • Tighten the steering column bolts in the same direction as they were removed.
    • Do not reuse the universal joint bolt when installing.

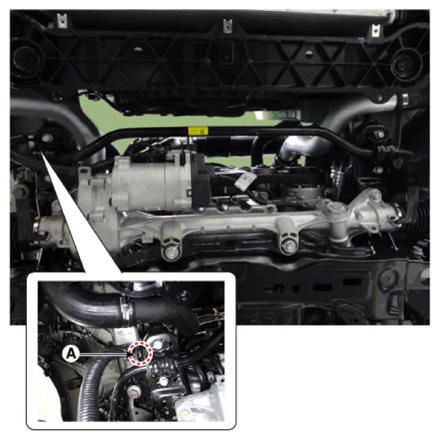

  7. Disconnect the R-MDPS wiring clip (A) from the sub frame.
    G12790082Courtesy of KIA MOTORS AMERICA, INC.

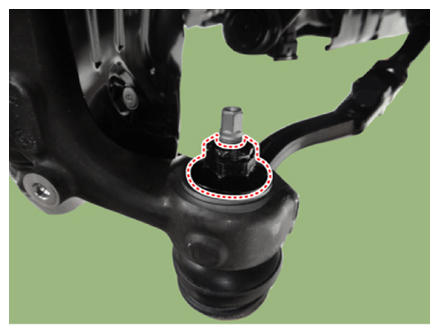

  8. Remove the tie rod end nut.

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12790083Courtesy of KIA MOTORS AMERICA, INC.

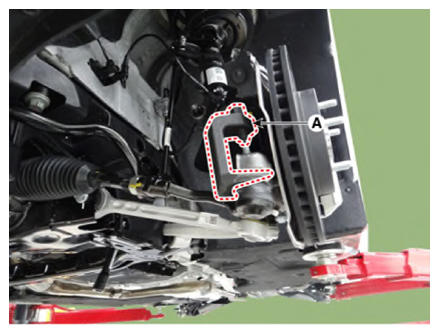

  9. Remove the knuckle by using the ball joint remover (A).
    G12790084Courtesy of KIA MOTORS AMERICA, INC.

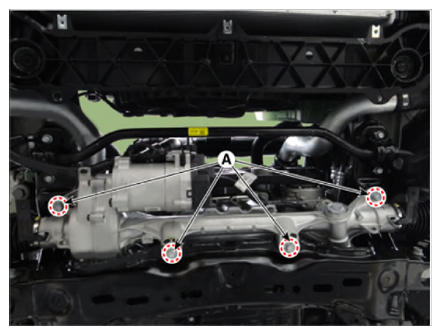

  10. Loosen the gear box bolts (A) and then remove the gear box.
    G12790085Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Must use a engine jack for safety.

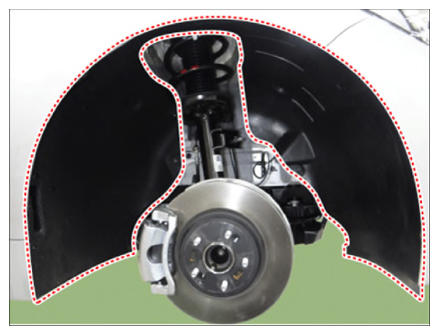

  11. Remove the front wheel guard.
    G12790086Courtesy of KIA MOTORS AMERICA, INC.

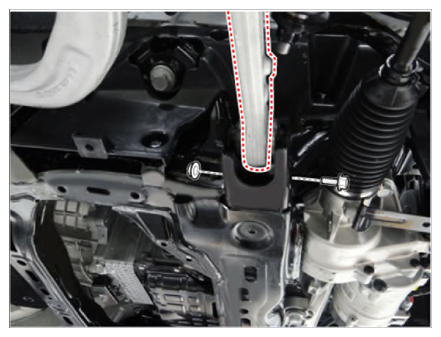

  12. Remove the lateral arm.

    Tightening torque:

    117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)

    G12790087Courtesy of KIA MOTORS AMERICA, INC.

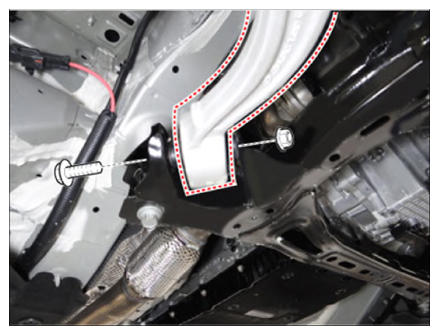

  13. Loosen the compression arm bolt & nut from the sub frame.

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

    G12790088Courtesy of KIA MOTORS AMERICA, INC.
  14. Remove the hood assembly.

    (Refer to " HOOD ASSEMBLY  ")

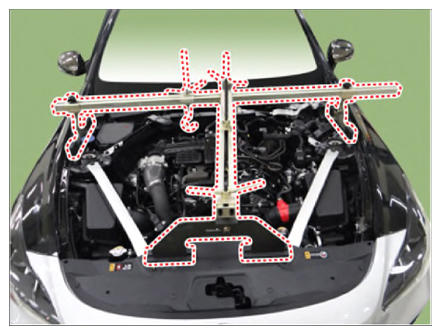

  15. Assemble the engine support fixture on the engine room.

    (Refer to " ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING  ")

    G12790089Courtesy of KIA MOTORS AMERICA, INC.

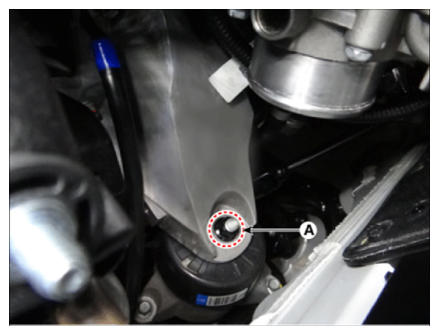

  16. Loosen the engine mounting insulator nut (A).

    Tightening torque:

    63.7 - 83.3 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

    Theta-II 2.0 T-GDI

    [LH]

    G12790090Courtesy of KIA MOTORS AMERICA, INC.

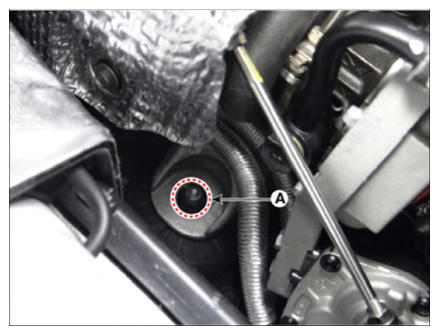

    [RH]

    G12790091Courtesy of KIA MOTORS AMERICA, INC.

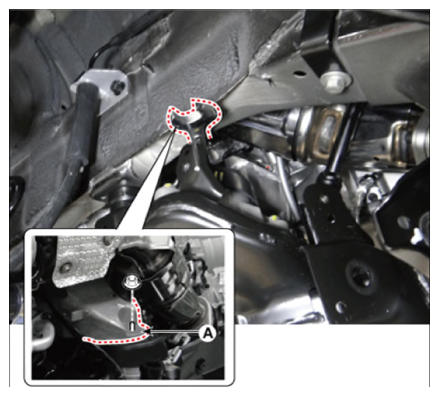

    Lambda-II 3.3 T-GDI

    [LH]

    G12790092Courtesy of KIA MOTORS AMERICA, INC.

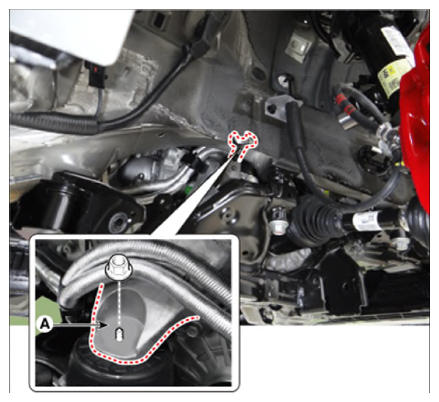

    [RH]

    G12790093Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When loosen the 3.3 T-GDI LAMBDA II mounting insulator nut, raise the vehicle.

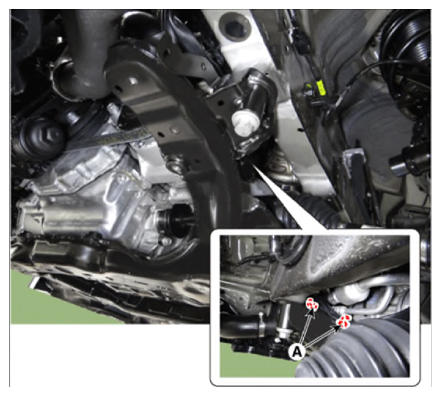

  17. Remove the clip (A) from the sub frame.

    [3.3 T-GDI LAMBDA II]

    G12790094Courtesy of KIA MOTORS AMERICA, INC.

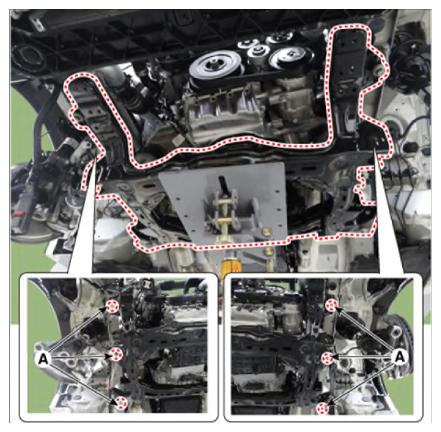

  18. Loosen the bolts (A) and then remove the sub frame.

    Tightening torque:

    176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb.ft)

    G12790095Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Must use a engine jack for safety.

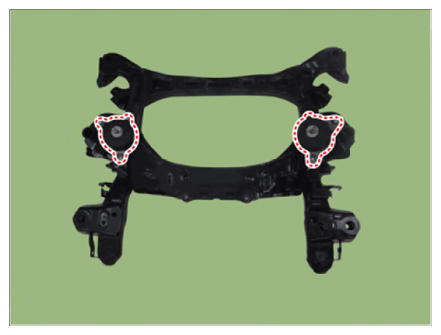

  19. Remove the engine bracket from the sub frame.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G12790096Courtesy of KIA MOTORS AMERICA, INC.
  20. Install in the reverse order of removal.
    NOTE: Install at the empty vehicle height when it is assembled.
  21. Check the front alignment.

    (Refer to " ALIGNMENT  ")
