Repair Procedures: Replacement: [AWD]

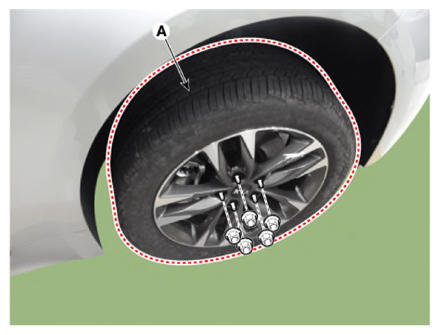

  1. Remove wheel nuts, front wheel and tire (A) from front hub.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

    G12790031Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the brake caliper.

    (Refer to " FRONT DISC BRAKE  ")

  3. Loosen the nut and then separate the stabilizer link from the front shock absorber.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G12790032Courtesy of KIA MOTORS AMERICA, INC.

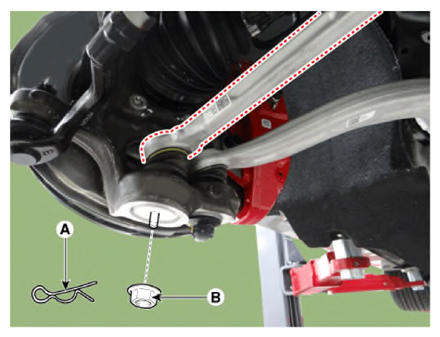

  4. Loosen the lateral arm pin (A) and nut (B).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12790033Courtesy of KIA MOTORS AMERICA, INC.

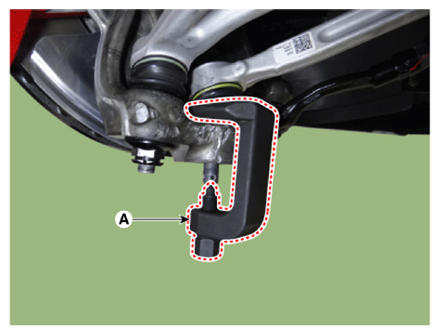

  5. Remove the lateral arm by using the ball joint remover (A).
    G12790034Courtesy of KIA MOTORS AMERICA, INC.

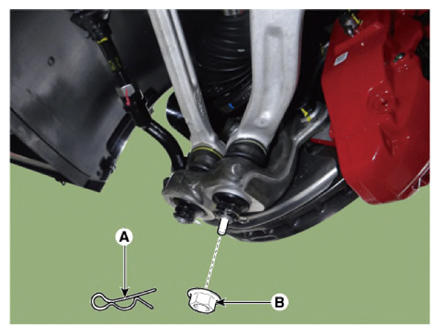

  6. Loosen the compression arm pin (A) and nut (B).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12790035Courtesy of KIA MOTORS AMERICA, INC.

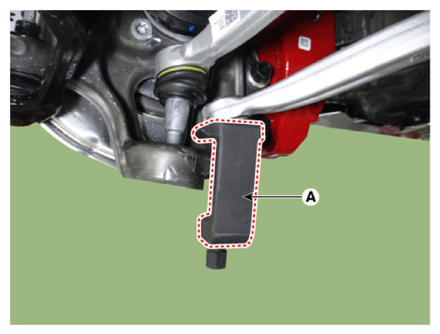

  7. Remove the compression arm by using the ball joint remover (A).
    G12790036Courtesy of KIA MOTORS AMERICA, INC.

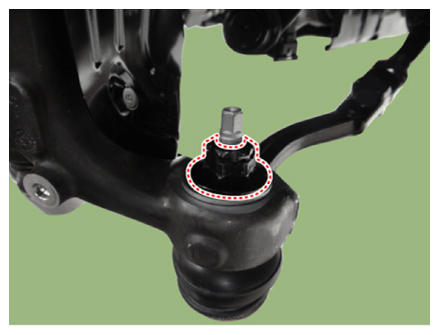

  8. Remove the tie rod end nut.

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12790037Courtesy of KIA MOTORS AMERICA, INC.

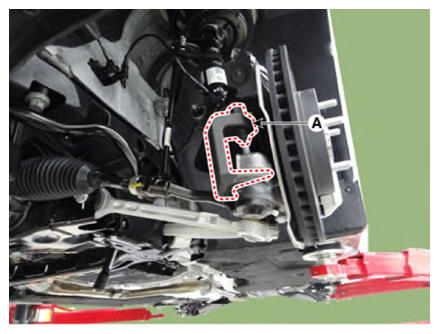

  9. Remove the knuckle by using the ball joint remover (A).
    G12790038Courtesy of KIA MOTORS AMERICA, INC.

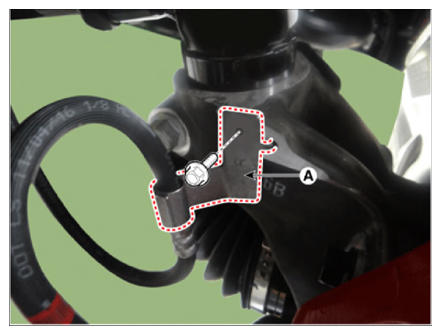

  10. Remove the brake hose bracket (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

    G12790039Courtesy of KIA MOTORS AMERICA, INC.

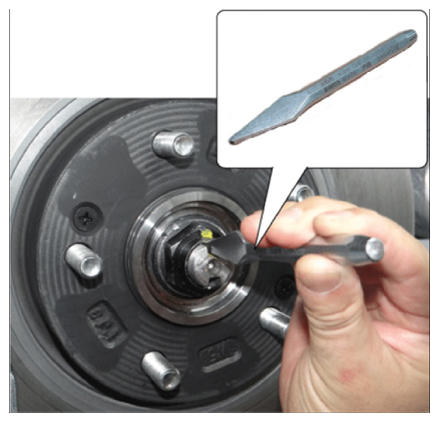

  11. By hammering on a chisel, unlock the driveshaft lock hub nut caulking.
    G12790040Courtesy of KIA MOTORS AMERICA, INC.

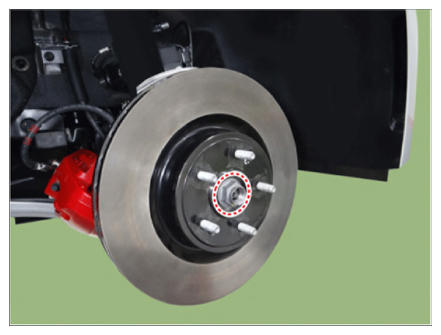

  12. Loosen the caulking nut (A) and then separate the hub assembly from the drive shaft.

    Tightening torque:

    294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb.ft)

    G12790041Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use plastic hammer to avoid damaging on axle when the drive shaft is disassembled.
    • Do not pull or twist excessively to remove the axle when the drive shaft is disassembled.
    NOTE: The driveshaft lock nut must be replaced with new one.
    G12790042Courtesy of KIA MOTORS AMERICA, INC.

    When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.
    G12790043Courtesy of KIA MOTORS AMERICA, INC.
    • Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
    • If there are two key seats, perform on all two seats.

    Caulking depth (A):  1.5 mm (0.0591 in)
    G12790044Courtesy of KIA MOTORS AMERICA, INC.

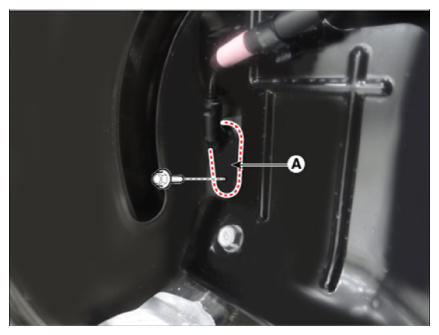

  13. Loosen the wheel speed sensor bolt (A) and then disconnect the wheel speed sensor.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

    G12790045Courtesy of KIA MOTORS AMERICA, INC.

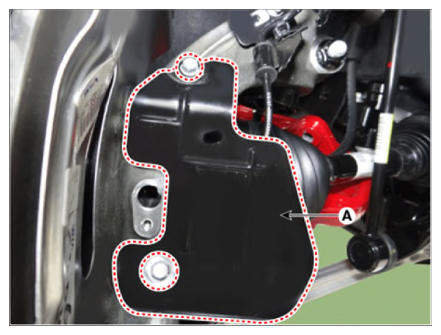

  14. Remove the brake cooling cover (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G12790046Courtesy of KIA MOTORS AMERICA, INC.

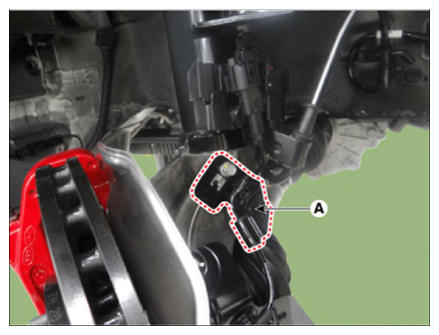

  15. Remove the wheel speed sensor bracket (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

    G12790047Courtesy of KIA MOTORS AMERICA, INC.

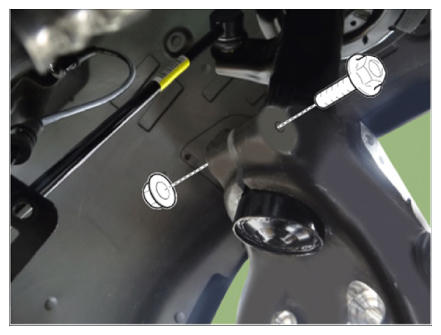

  16. Loosen the knuckle upper bolt & nut.

    Tightening torque:

    78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

    G12790048Courtesy of KIA MOTORS AMERICA, INC.

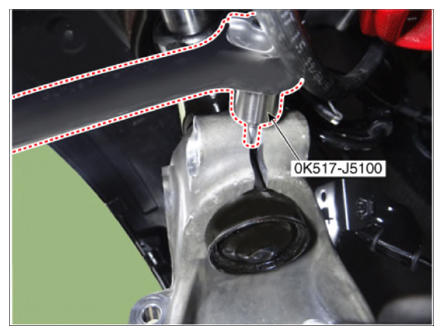

  17. Remove the knuckle by using the SST (0K517-J5100).

    Reference value:  Below 8.0 mm (0.31 in.)

    G12790049Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to exceed 8mm because it may cause knuckle quality issues.

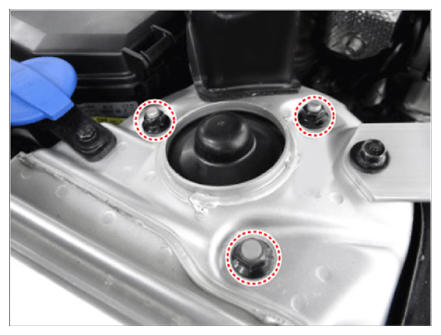

  18. Loosen the shock absorber upper nuts and then remove the shock absorber.

    Tightening torque:

    63.7 - 78.4 N.m (6.5 - 8.0 kgf.m, 47.0 - 57.9 lb.ft)

    G12790050Courtesy of KIA MOTORS AMERICA, INC.
  19. Install in the reverse order of removal.
    NOTE: Install at the empty vehicle height when it is assembled.
  20. Check the front alignment.

    (Refer to " ALIGNMENT  ")
