Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to Front Seat - " FRONT SEAT ASSEMBLY ")

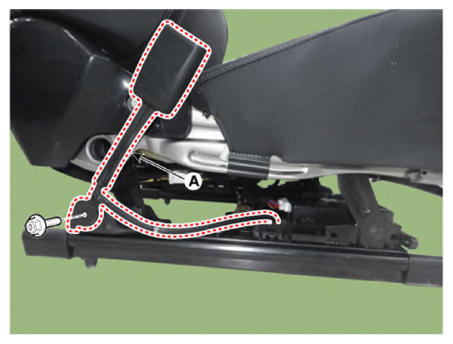

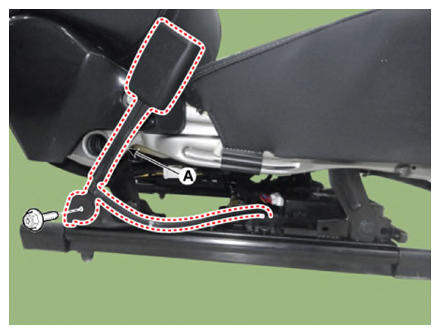

Remove the front seat belt buckle (A) after loosening the mounting bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
