Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
Information
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.

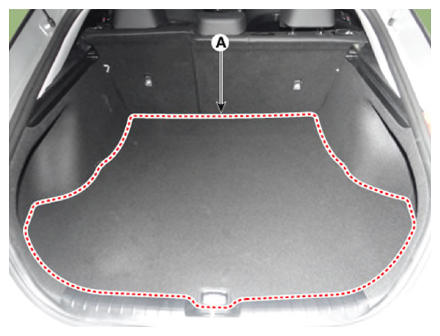

- Remove the luggage covering mat (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

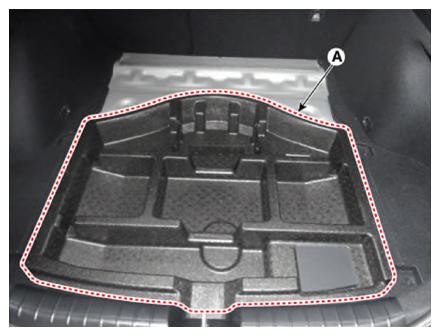

- Remove the center tray (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

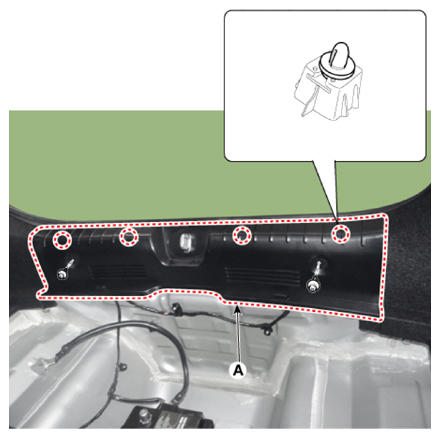

- Remove the rear transverse trim (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
Replace any damage clips.
