Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

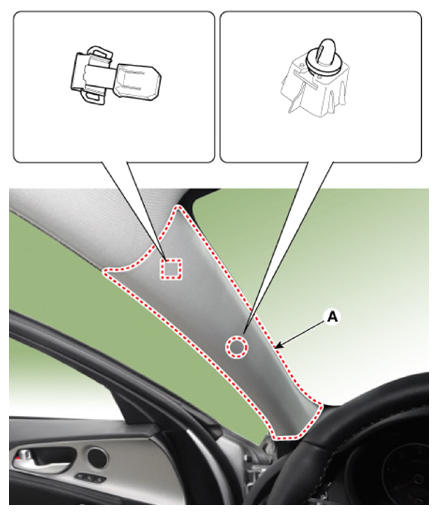

Separate the pillar trim and then remove the front pillar trim (A) by pushing the mounting clip in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Replace any damaged clips.

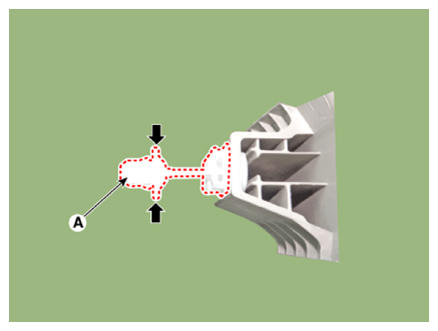

- Once the front pillar trim has been removed, replace the clip (A) with new ones.

Courtesy of KIA MOTORS AMERICA, INC.
