Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

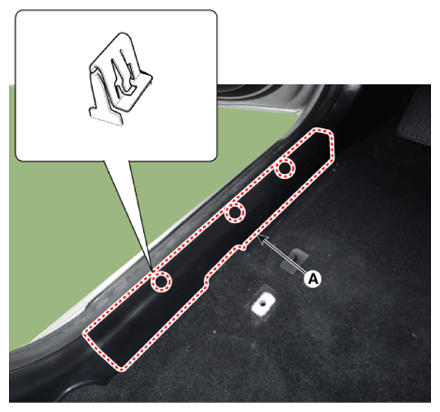

Remove the front door scuff trim (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

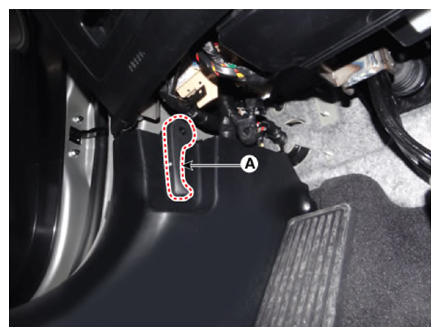

Remove the hood latch release handle (A).

Courtesy of KIA MOTORS AMERICA, INC.
Carefully remove the front door body side weather strip.

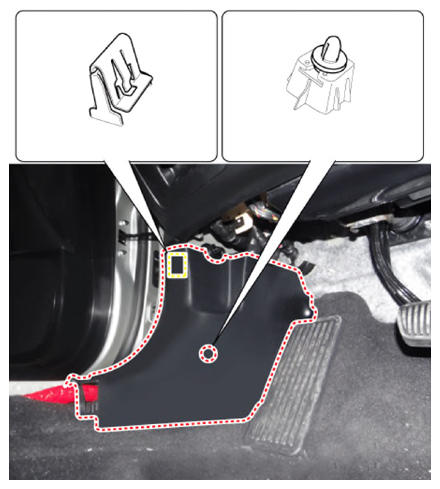

Remove the cowl side trim (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damage clips.
