Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

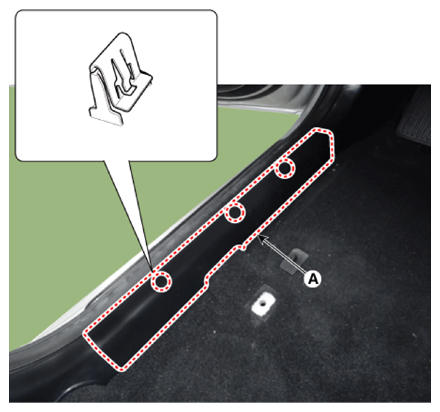

1. Remove the front door scuff trim (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

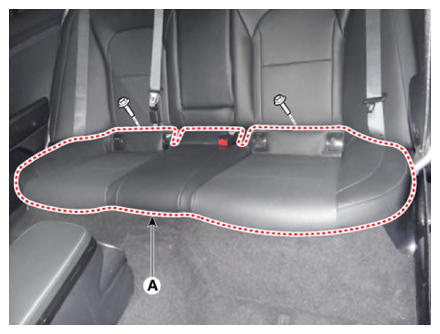

2. Separate the rear seat cushion (A) after loosening the mounting bolts.

   Courtesy of KIA MOTORS AMERICA, INC.

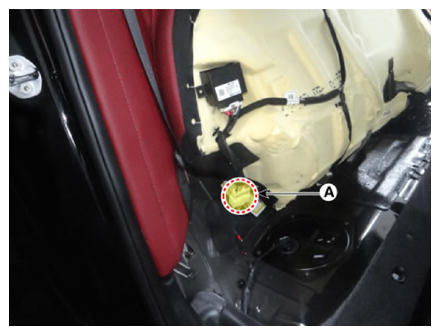

3. Remove the rear seat cushion after disconnecting the heater connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

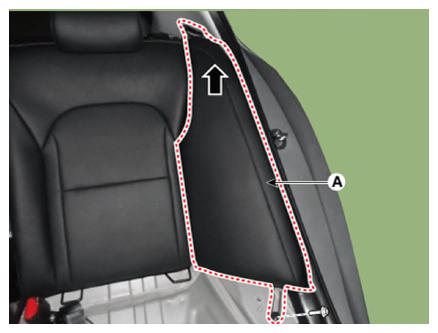

4. Remove the rear back side seat (A) by pulling it up after loosening the mounting bolts.

   Courtesy of KIA MOTORS AMERICA, INC.

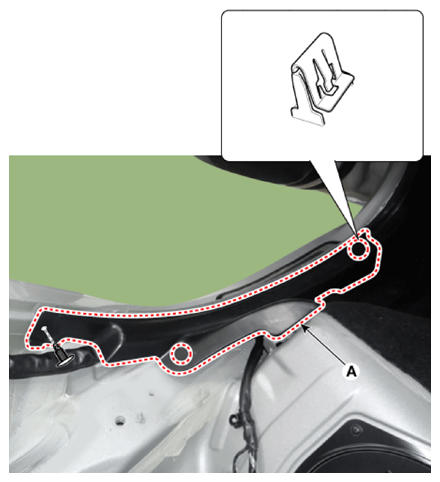

5. Remove the rear door scuff trim (A) after removing the mounting clip.

   Courtesy of KIA MOTORS AMERICA, INC.

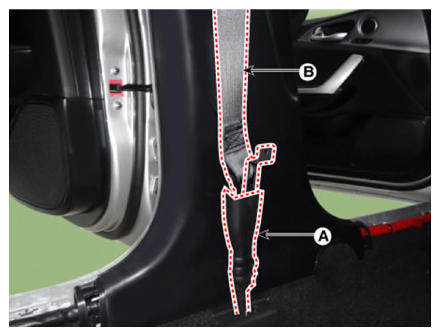

6. Remove the seat belt (B) from the EFD system (A) by using the SST (0K888-D4200).

   Courtesy of KIA MOTORS AMERICA, INC.

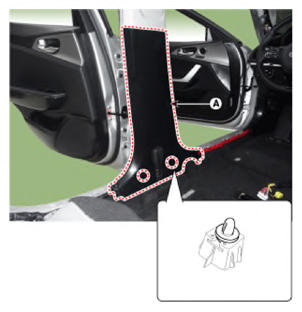

7. Remove the center pillar lower trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

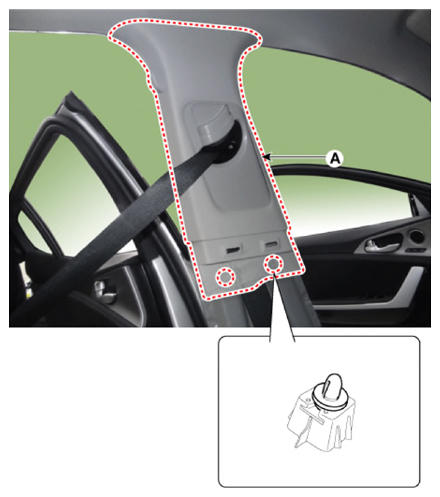

8. Remove the center pillar upper trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Install in the reverse order of removal.

   Information

   Replace any damage clips.
