Home >> Kia >> 2018 >> Stinger Base, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Rear Bumper Antenna

Rear Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper beam assembly.

    (Refer to Body - " REAR BUMPER BEAM ASSEMBLY  ")

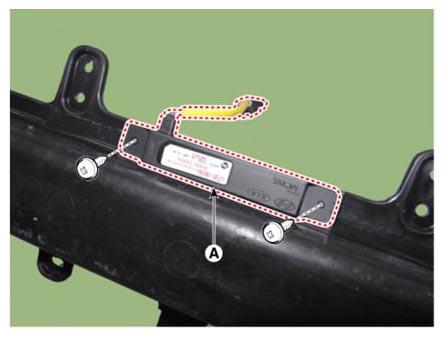

  3. Remove the rear bumper antenna (A) after loosening the mounting screws.
    G12798842Courtesy of KIA MOTORS AMERICA, INC.
