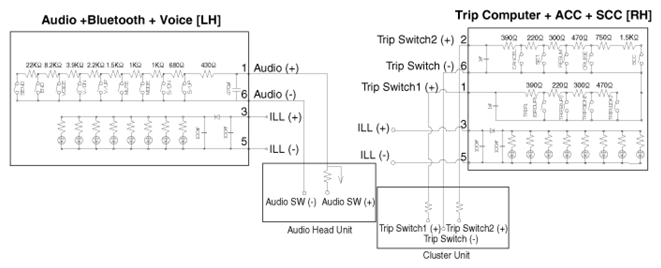

Home >> Kia >> 2018 >> Stinger Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation (AVN) System >> AVN Remote Controller >> Schematic Diagrams >> Circuit Diagram >> Notes
