Liftgate Lock Module Inspection

  1. Remove the liftgate trim.

    (Refer to " TAIL GATE TRIM  ")

  2. Disconnect the connectors from the actuator.

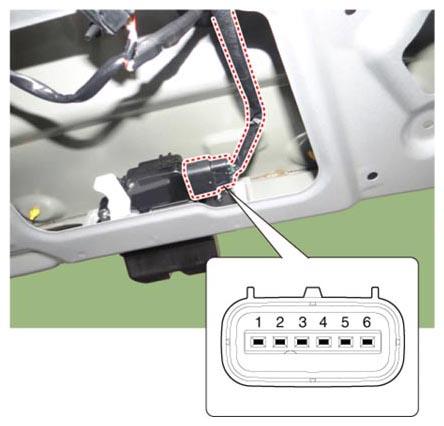

    G12798650Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground as shown in the illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.

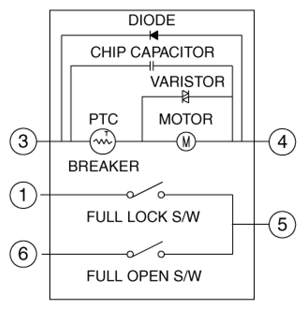

    G12798651Courtesy of KIA MOTORS AMERICA, INC.

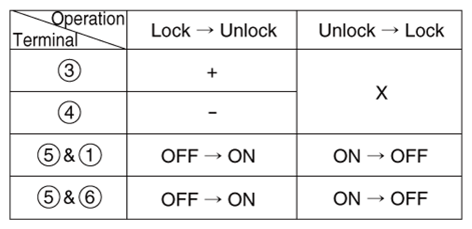

    G12798652Courtesy of KIA MOTORS AMERICA, INC.
  4. Checking the liftgate of the vehicle power option power refers to the liftgate module.
