Repair Procedures: Inspection

  1. Lift the vehicle.
  2. Remove the under cover.

    (Refer to "UNDER COVER ")

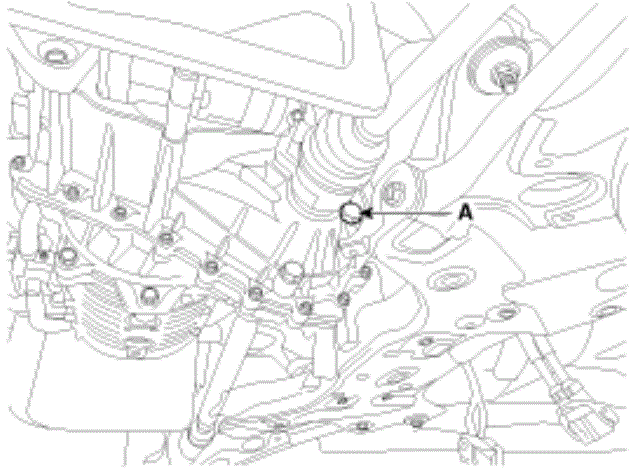

  3. Remove the oil filler plug (A).
    G12825918Courtesy of KIA MOTORS AMERICA, INC.

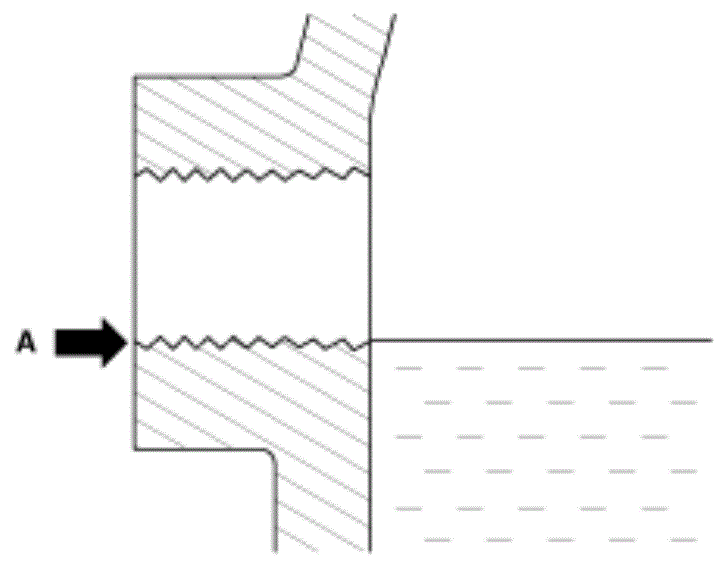

  4. Check the oil condition and then oil level (A).
    G12825919Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If the oil level is low, supplement the oil up to filler plug hole.

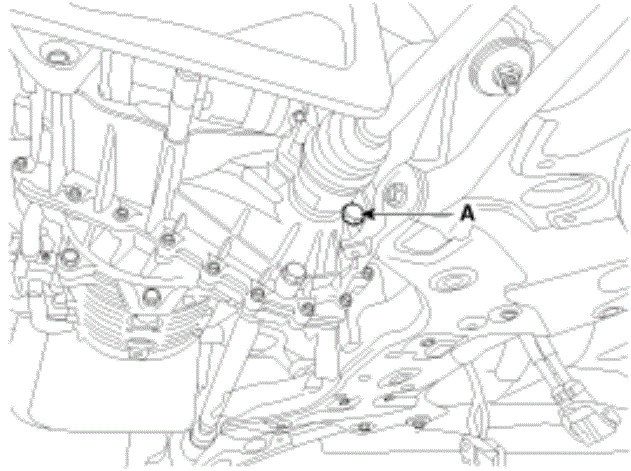

  5. Install the oil filler plug (A).
    G12825920Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Must replace with new gasket when installing the drain plug.
