Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing and installing the hood lifter, work in a group of two or more.
When removing the clips, use a clip remover.

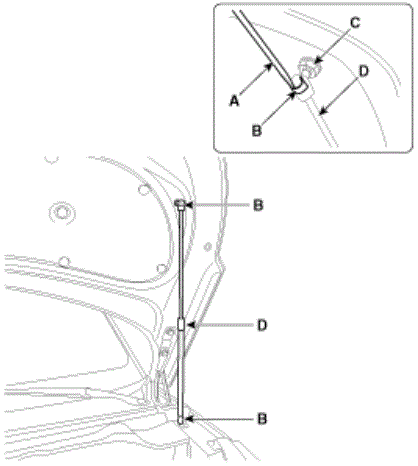

Using a screwdriver (A), lift the socket clips (B) up slightly on both ends of the lifter (D), and then remove the lifter from the bracket (C).

Courtesy of KIA MOTORS AMERICA, INC.
Push the socket of the lifter into the bracket for installation.
Information
- Make sure that the hood locks/unlocks and opens/closes properly.
