Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

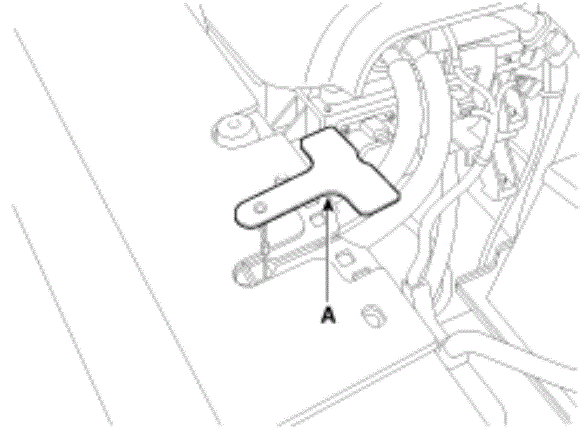

  1. Remove the charge door handle (A).
    G12820324Courtesy of KIA MOTORS AMERICA, INC.

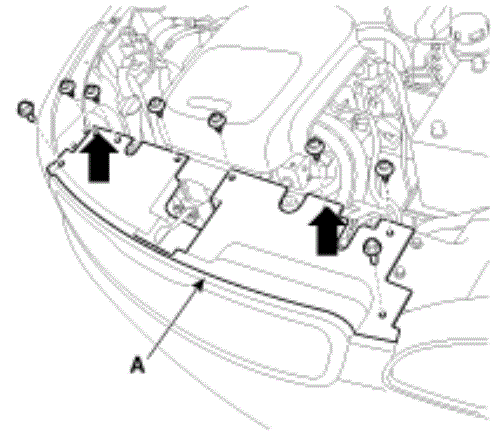

  2. Loosen the front bumper upper cover mounting bolts and clips.
    G12820325Courtesy of KIA MOTORS AMERICA, INC.
  3. Gently lift the bumper upper cover.

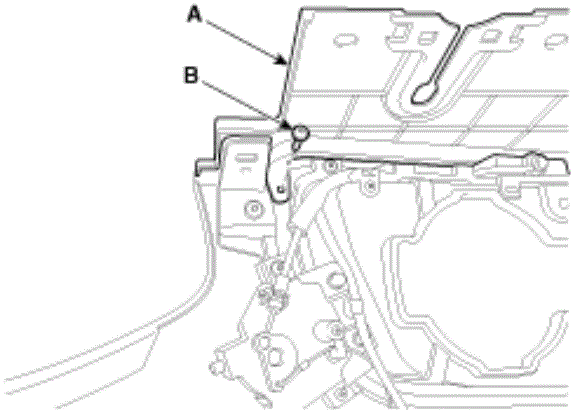

  4. Loosen the screw (B), and then remove the front bumper upper cover (A).
    G12820326Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the bolts, and then remove the hood latch assembly (B).
    G12820327Courtesy of KIA MOTORS AMERICA, INC.

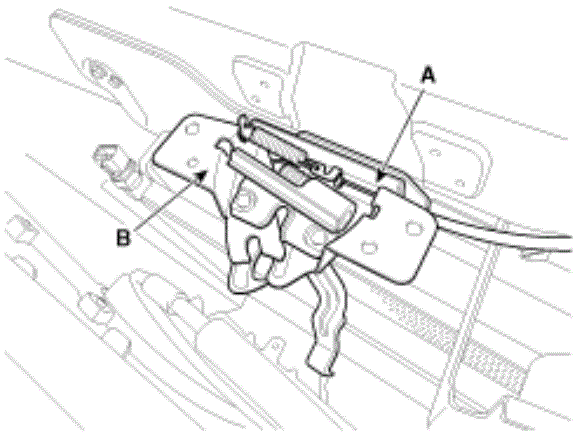

  6. Disconnect the hood latch cable (A) and remove the hood lower latch assembly (B).
    G12820328Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.

    Information

    • Make sure that the hood latch release cable is connected properly.
    • Make sure that the hood locks/unlocks and opens/closes properly.
    • Adjust the latch alignment.
