Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

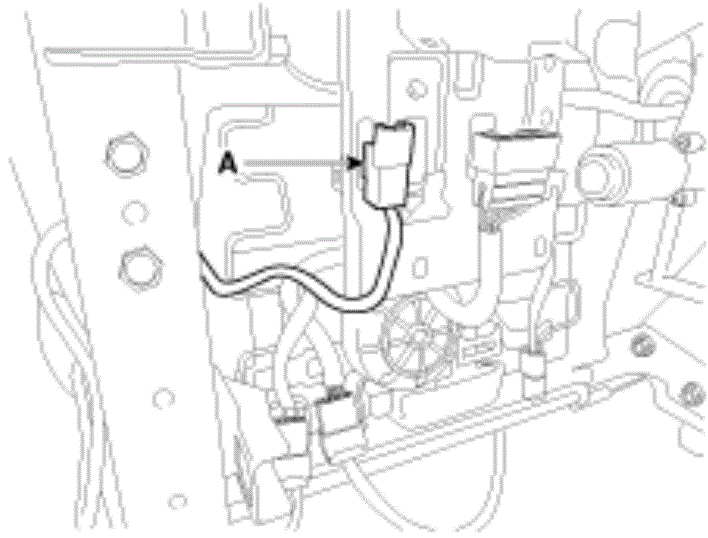

Disconnect the front seat belt buckle connector wiring (A).

Courtesy of KIA MOTORS AMERICA, INC.

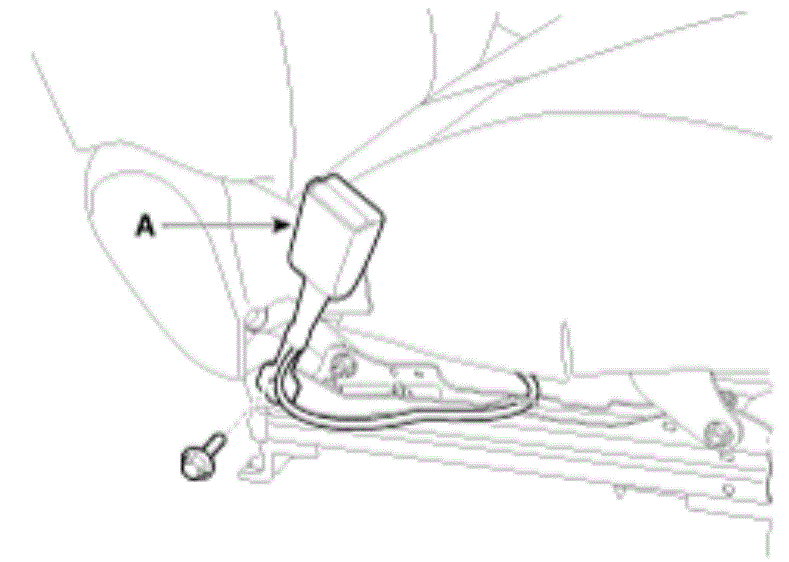

After loosening the mounting bolt, remove the front seat belt buckle (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
