Shift Lock Solenoid Replacement

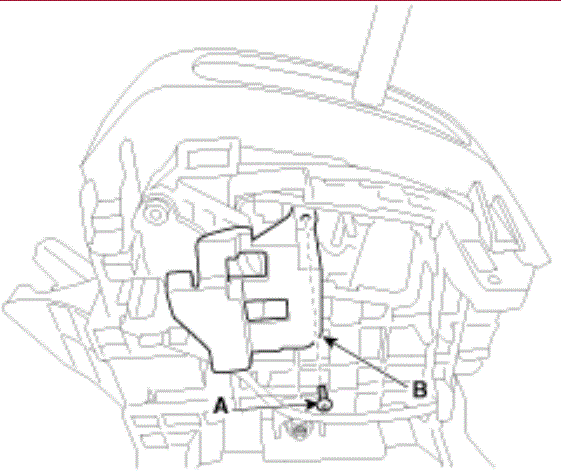

  1. Remove the plastic bracket (B) by loosening the screw (A).
    G12825956Courtesy of KIA MOTORS AMERICA, INC.

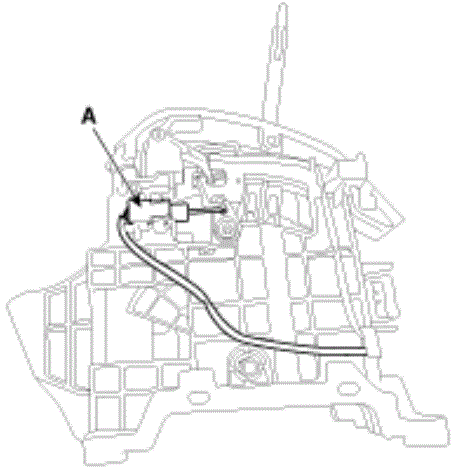

  2. Remove the shift lock solenoid (A) from the shift lever assembly.
    G12825957Courtesy of KIA MOTORS AMERICA, INC.

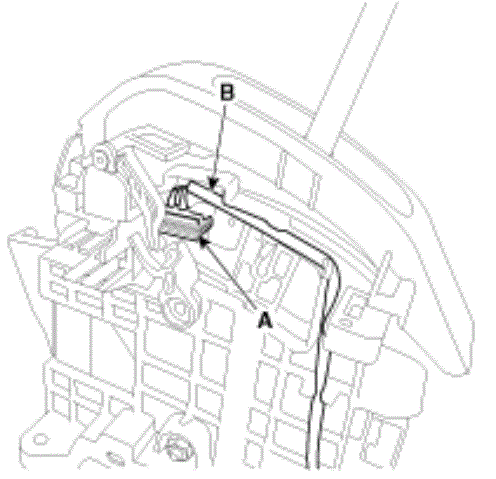

  3. Disconnect the key inter lock switch (B) by removing the plastic bracket (A).
    G12825958Courtesy of KIA MOTORS AMERICA, INC.

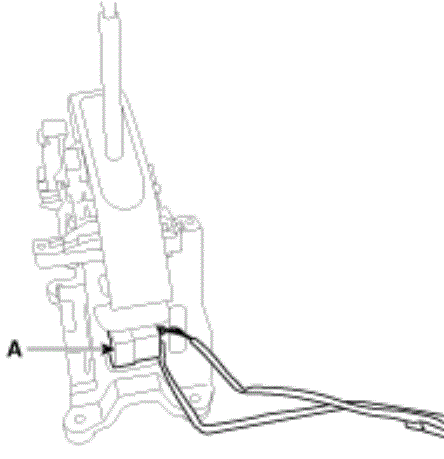

  4. Disconnect the shift lever main connector (A).
    G12825959Courtesy of KIA MOTORS AMERICA, INC.

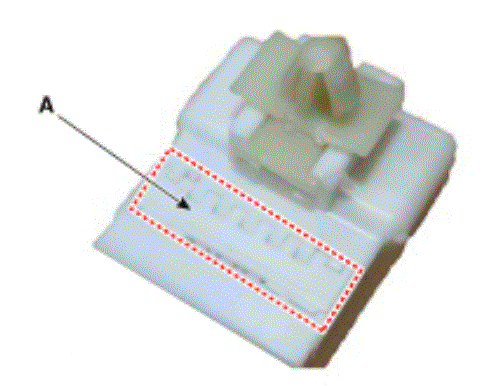

  5. Remove the wiring fixed bracket in the main connector.
    G12825960Courtesy of KIA MOTORS AMERICA, INC.

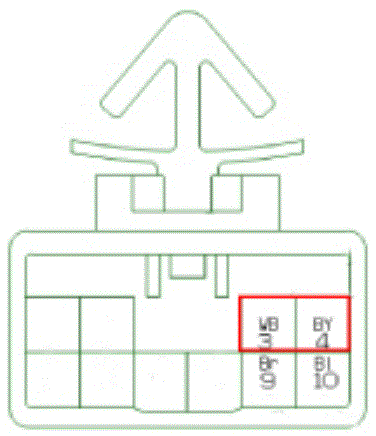

  6. Remove the shift lock solenoid wiring from the main connector
    NOTE: Be sure to check the wiring color before disconnecting the wiring.
    G12825961Courtesy of KIA MOTORS AMERICA, INC.
    Pin Function
    3 Shift lock solenoid (-)
    4 Shift lock solenoid (+)
    9 Key inter lock switch (-)
    10 Key inter lock switch (+)
