Repair Procedures: Replacement

  1. Using the lift raise the car.
  2. Remove the under cover.

    (Refer to "UNDER COVER ")

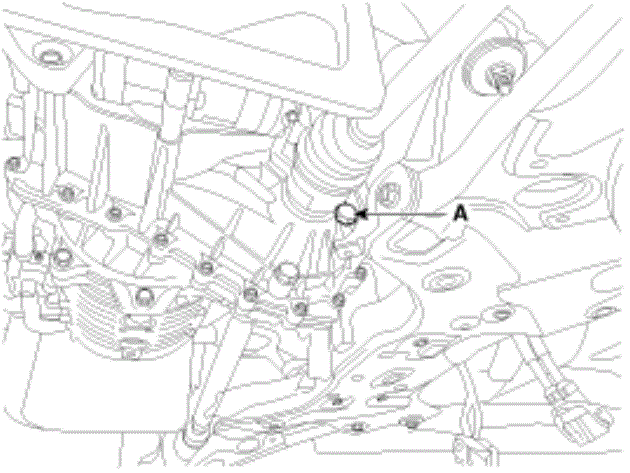

  3. Remove the drain plug (A) and drain the oil totally and then reinstall the drain plug.
    G12825921Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Must replace with new gasket when installing the drain plug.

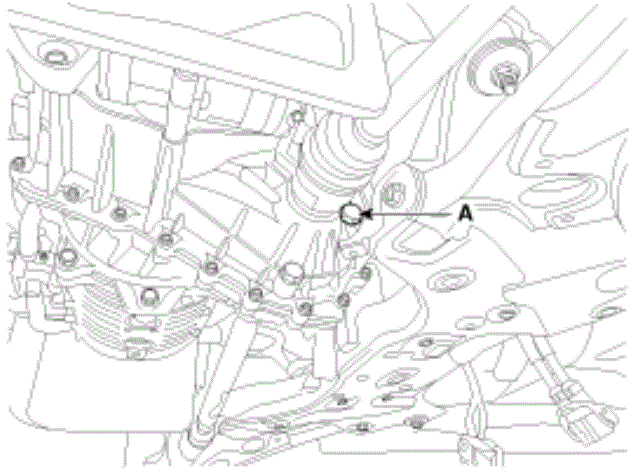

  4. Remove the oil filler plug (A).
    G12825922Courtesy of KIA MOTORS AMERICA, INC.

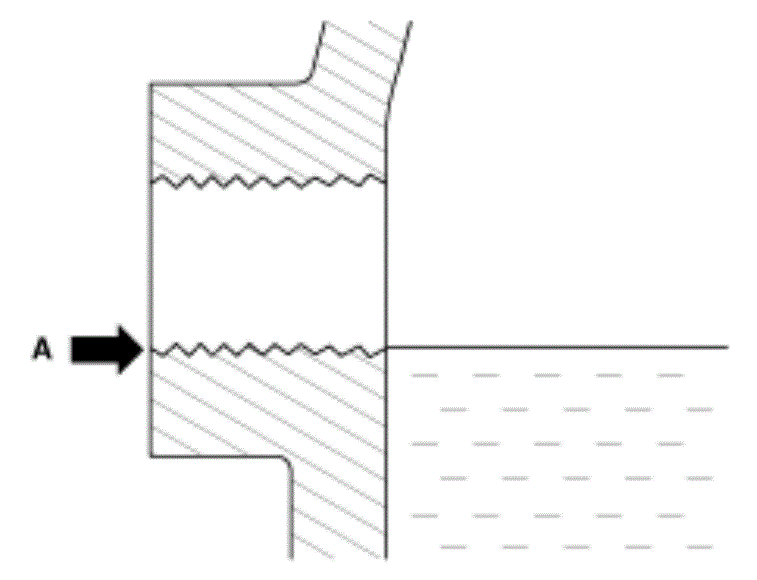

  5. Supplement up to oil filler plug hole.
    G12825923Courtesy of KIA MOTORS AMERICA, INC.

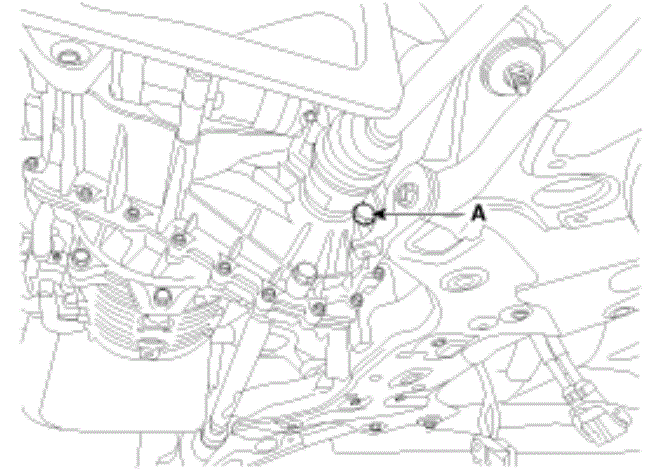

  6. Install the oil filler plug (A).
    G12825924Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the under cover.

    (Refer to "UNDER COVER ")
