Components & Components Location: Components

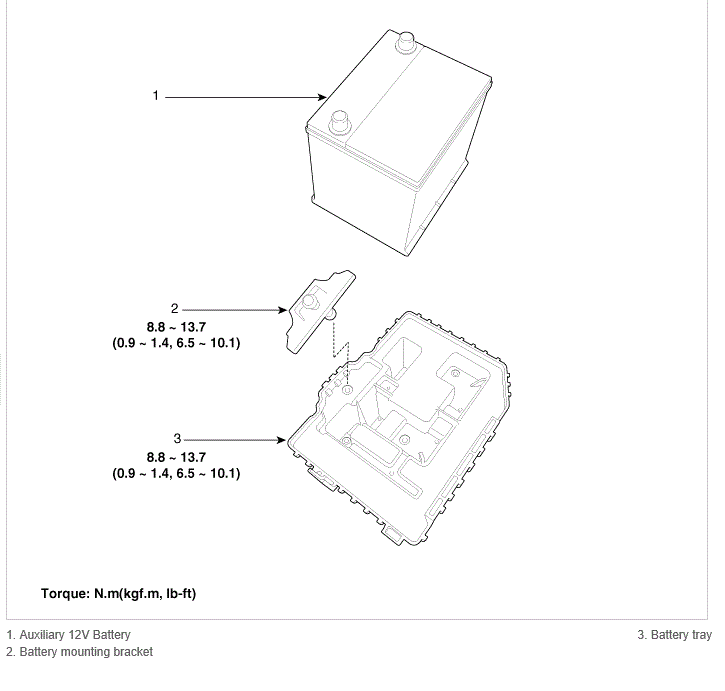

Fig 1: Auxiliary 12V Battery Components With Torque Specification

G12826014

Courtesy of KIA MOTORS AMERICA, INC.
