Description And Operation: Description: Notes

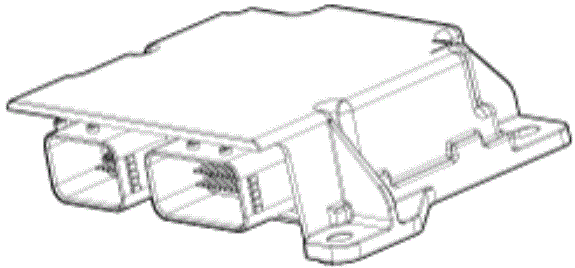

The yaw rate and G sensor is included inside the air bag control module (SRSCM).
When the vehicle is turning with respect to a vertical axis the yaw rate sensor detects the yaw rate electronically by the vibration change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle's yawing, the ESC control is reactivated.
The lateral G sensor senses vehicle's lateral G. A small element inside the sensor is attached to a deflectable lever arm by the lateral G
Direction and magnitude of lateral G loaded to vehicle can be known by the change in electrostatic capacity according to lateral G.
